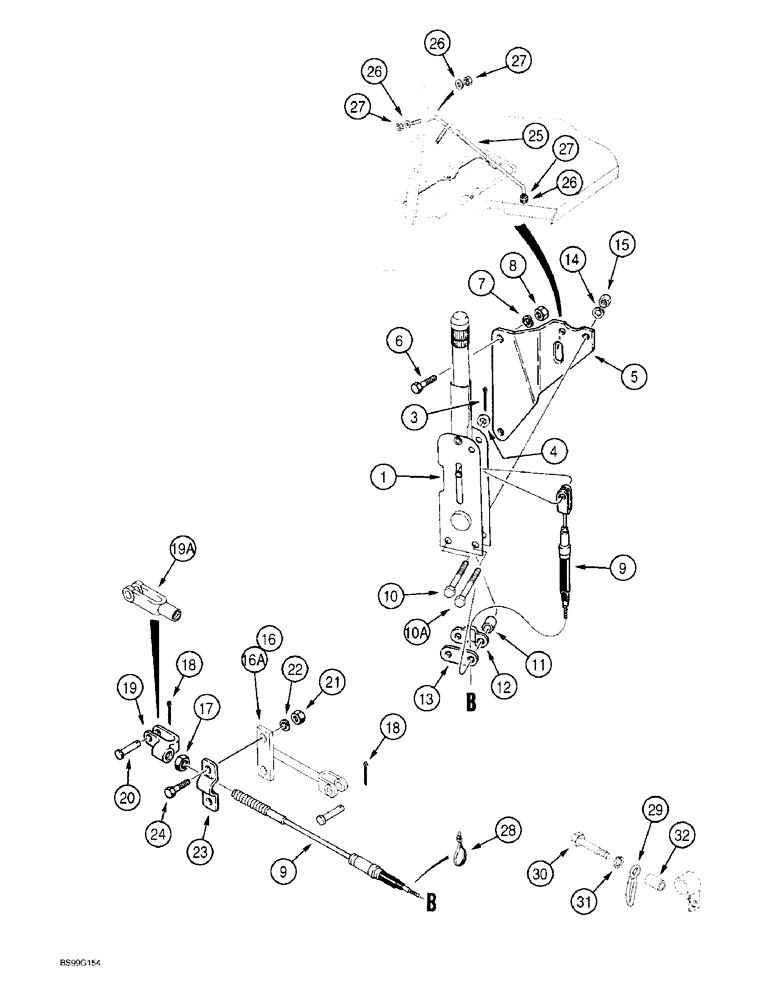

Запчасти Case 580L (7-012) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

367977A1

LEVER

ASSEMBLY, parking brake, 18-5/8/474 mm long, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

2

NSS

NOT SOLD SEPARAT

PIN clevis, lever to brake cable

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

5

124646A1

SUPPORT

BRACKET mounting, parking brake lever

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

9

280681A1

CABLE,1325mm L

parking brake, 1325 mm/52-3/16 inch long

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

10a

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

11

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

split, clamp

2шт.

12

D121608

CLAMP

cable

1шт.

13

D129747

PLATE

oval spacer, plated

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

16

280886A1

SUPPORT

YOKE cable, 110 mm/4-3/8 inch long, used with P/N 279172A1 axle, if used

1шт.

16a

326348A1

SUPPORT

YOKE cable, 151 mm/6 inch long, used with P/N 319063A1 axle, if used

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

19

L11182

YOKE,3/8" - 24

CLEVIS offset, 3/8 inch, used with 27P/N 9172A1 axle, if used

1шт.

19a

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF, used with P/N 319063A1 axle, if used

1шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

Clevis

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

A188028

CLAMP

cable

1шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

180801A1

SUPPORT

BRACE loader control bracket

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

27

425-106

NUT,3/8"-16, Cl 5

6шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, if used

1шт.

29

223722A1

SUPPORT

BRACKET combination, yield support, brake cable, mounts with P-clamp, Re.f 26, srr Figure 4-11 to chassis frame

1шт.

30

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

32

130245A1

SPACER

bracket

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.
