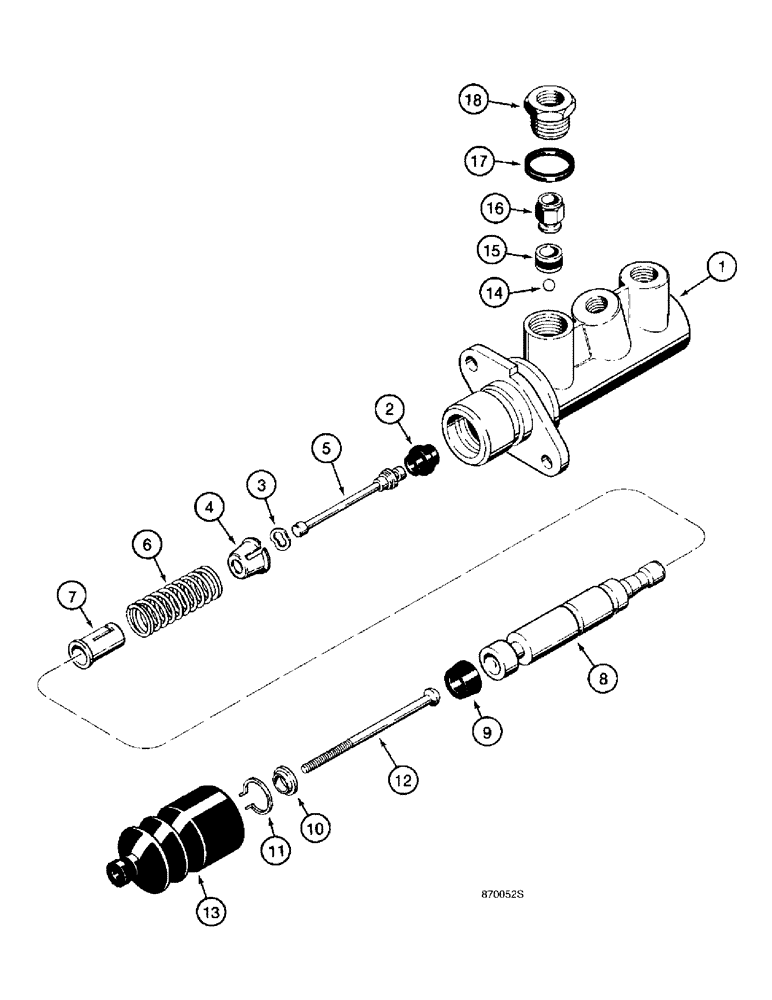

Запчасти Case 580L (7-010) - BRAKE MASTER CYLINDER (07) - BRAKES

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER ASSEMBLY, brake master, Inc: Ref. 1 - 17

2шт.

1

NSS

NOT SOLD SEPARAT

BODY master cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL plunger

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER special

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT spring, short

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER piston

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring, long

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON master cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER seal, special

1шт.

11

NSS

NOT SOLD SEPARAT

RING retaining, washer

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

12

NSS

NOT SOLD SEPARAT

ROD push

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT push rod

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

14

NSS

NOT SOLD SEPARAT

BALL flow valve

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL flow valve

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE flow

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET flow valve

1шт.

Part of Cylinder Seal Kit P/N N14784

1шт.

18

NSS

NOT SOLD SEPARAT

ADAPTER flow valve

1шт.

N14784

KIT

seal, cylindr, service, Inlcudes: Ref. 2, 3, 9, 11, 13-15 and 17

1шт.
