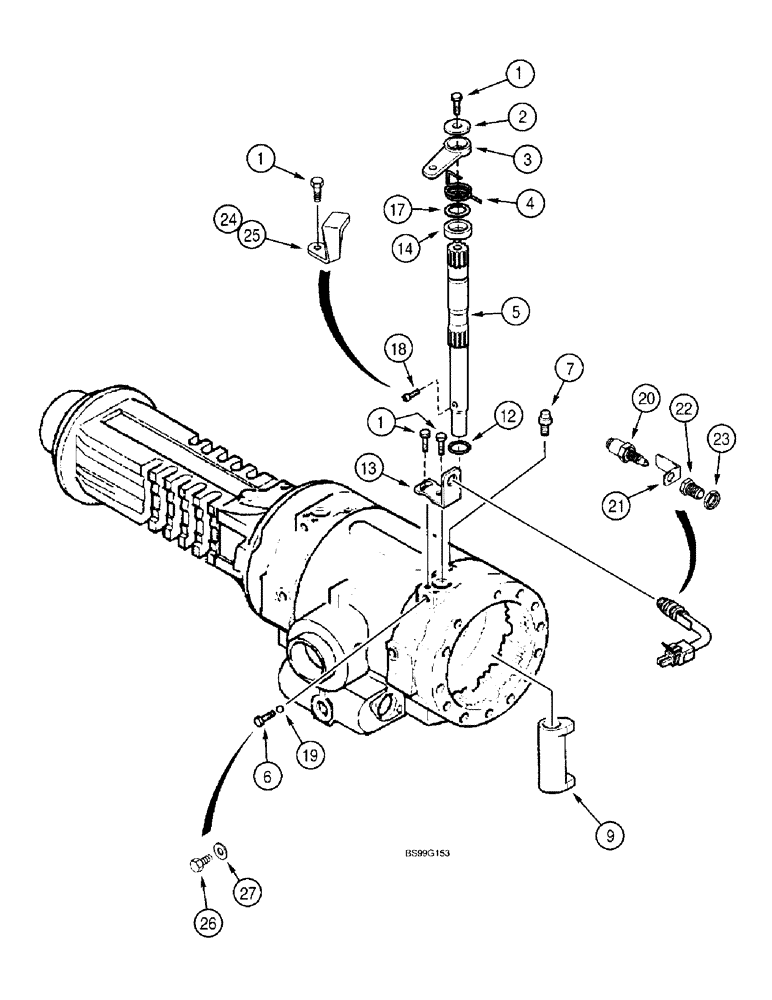

Запчасти Case 580L (7-005C[C]) - REAR DRIVE AXLE, PARKING BRAKE (07) - BRAKES

319063A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-104-6-112, Inc. Ref. 1-22

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

BOLT special, 8 x 20 mm

6шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

2

190463A1

WASHER

flat

2шт.

3

280436A1

LEVER

brake, 100 mm

2шт.

4

190476A2

SPRING

left-hand, shown

1шт.

4

190477A2

SPRING

right-hand, not shown

1шт.

5

308040A1

SHAFT

brake control

2шт.

6

283462A1

BOLT

BOLT special, 8-1.0 x 23.5 mm

2шт.

7

E135810

VENTING SCREW

PLUG brake bleeder, brake housing

2шт.

9

196085A1

CAM

brake

2шт.

12

321183A1

O-RING

special, Replaces: P/N 190448A1

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

13

256478A1

SUPPORT

BRACKET stop

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

14

256481A1

SPACER

BUSHING shaft

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

17

256482A1

SHIM

shaft

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

18

256485A1

BOLT

BOLT special, 6 x 16 mm

2шт.

19

283466A1

BALL

6.5 mm

2шт.

281952A1

KIT

switch, park brake, Inlcudes: Ref. 20-23

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

20

280450A1

PARK BRAKE SWITCH

SWITCH brake

1шт.

21

280452A1

BRACKET

switch guard, lever

1шт.

22

280457A1

LEVER

SLEEVE switch

1шт.

23

281960A1

NUT

special, 16 mm - 1.5, Inc. Ref. 24-27

1шт.

279645A1

PACKAGE, REPAIR

KIT parking brake, external adjustment parts, with instructions, Includes Ref. 1, 12-17, 19, 24-27, and P/N 2819552A1 if used

1шт.

24

259254A1

RETAINER

left-hand

1шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

25

280443A1

RETAINER

right-hand

1шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

26

514-634

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

hex, full thread, 8-1.0 x 16 mm

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.

27

181104A1

COPPER WASHER

WASHER sealing, copper

2шт.

Part of Parking Brake Kit P/N 279645A1

1шт.
