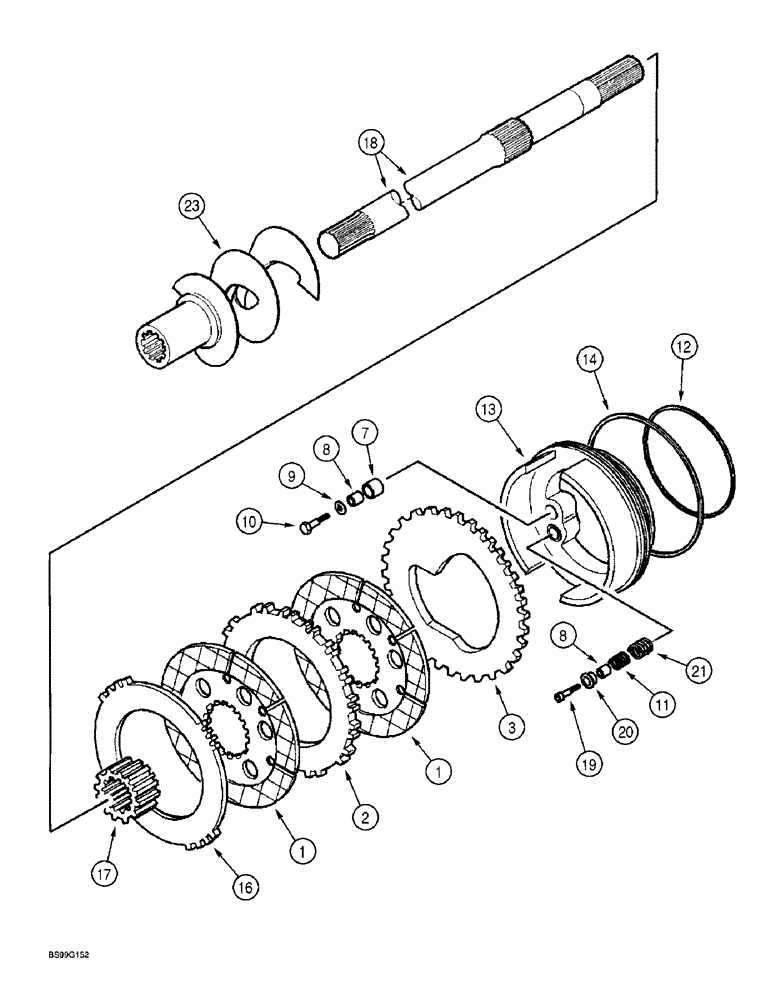

Запчасти Case 580L (7-005A[A]) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

319063A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-104-6-112, Includes: Ref. 1-25

1шт.

1

237021A1

LARGE PLATE

DISC brake

4шт.

2

237022A1

LARGE PLATE

PLATE friction, inner

2шт.

3

308029A1

PLATE

piston

2шт.

358212A1

KIT

brake self adjuster, Includes Ref. 7 and 8

1шт.

7

190449A1

SPLIT PIN

SPACER split, 18 x 20 mm, no longer sold separately, order P/N 358212A1 kit

6шт.

8

190496A1

BUSHING

spacer, no longer sold seperately, order P/N 358212A1 kit

12шт.

9

190450A1

WASHER

flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

outer

6шт.

12

308036A1

O-RING,172mm ID x 3.5mm Thk

small

2шт.

13

359653A1

PISTON

brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

large

2шт.

16

308030A1

PLATE

friction, outer

2шт.

17

308042A1

SPLINED COUPLING

SLEEVE splined

2шт.

18

295111A1

SHAFT

splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

6шт.

20

190500A1

COVER

spring

6шт.

21

237025A1

SPRING

inner

6шт.

23

295113A1

AUGER,LH, 29 Tooth Splined Hub

LH Shown, includes weld-on clamp and bolt, with welded on drive coupling, Includes: Ref. 25

1шт.

192549A1

AUGER

CLAMP, lock style hub an auger, left-hand, counterclockwise, not shown

1шт.

23

295112A1

AUGER,RH, 29 Tooth Splined Hub

LH Shown, includes weld-on clamp and bolt, with welded on drive coupling, Includes: Ref. 25

1шт.

192424A1

AUGER

CLAMP, lock style hub an auger, right-hand, clockwise, not shown

1шт.

24

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not shown

1шт.
