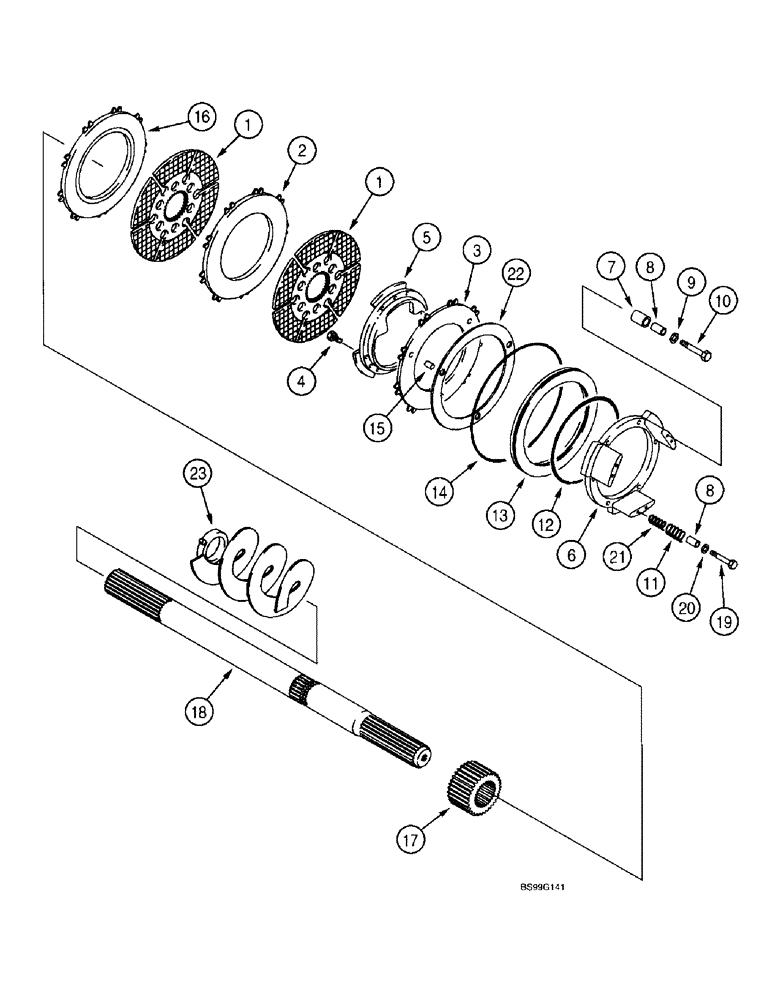

Запчасти Case 580L (7-002) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

ref

279172A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-094-6-102, 7-002/004, no longer available, order P/N 319063A1 axle, 6-104, P/N 213-126 clevis, 2, P/N 322184A1 hose and P/N 326348A1 yoke, 7-008/012 for clevis, yoke and hose, Includes: Ref. 1-25

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

237021A1

LARGE PLATE

DISC brake

4шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

2

237022A1

LARGE PLATE

PLATE friction, inner

2шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

3

237023A1

LARGE PLATE

PLATE piston

2шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

190461A1

FLANGE

inner

2шт.

6

190460A1

FLANGE

outer

2шт.

7

190449A1

SPLIT PIN

SPACER split, 18 x 20 mm, no longer sold separately, order P/N 248071A1 kit

6шт.

Part of Brake Self Adjuster Kit P/N 248071A1

1шт.

8

295032A1

BUSHING

spacer, no longer sold separately, order P/N 248071A1 kit

12шт.

Part of Brake Self Adjuster Kit P/N 248071A1

1шт.

9

190450A1

WASHER

flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

outer

6шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

12

190492A1

O-RING,6.984" ID x 7.262" OD x 0.139"

small

2шт.

13

190502A1

PISTON

brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

large

2шт.

15

190447A1

SPLIT PIN

PIN split, 6 x 14 mm

6шт.

16

237024A1

LARGE PLATE

PLATE friction, outer

2шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

17

190453A1

SLEEVE

splined

2шт.

18

190470A1

SHAFT

splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT hex socket, 6-1.0 x 35 mm

6шт.

20

190500A1

COVER

spring

6шт.

21

237025A1

SPRING

inner

6шт.

Part of Brake Disc and Plate Kit P/N 243893A1

1шт.

22

190504A1

SHIM

GASKET piston

2шт.

23

192424A1

AUGER

oil, right hand, Includes: weld-on clamp and bolt, Includes: Ref. 25

1шт.

24

192549A1

AUGER

oil, left hand, Includes: weld-on clamp and bolt, not shown, Includes: Ref. 25

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW, hex socket, 6 - 1.0 x 20 mm, class 12.9

2шт.

248071A1

SERVICE KIT

KIT brake, self adjuster, with spacer and bushing, plus an instruction sheet, Includes: Ref. 7 and 8

1шт.

243893A1

BRAKE PACKAGE

KIT brake disc and plates, service replacement, Includes: Ref. 1-3, 11, 16, and 21

1шт.
