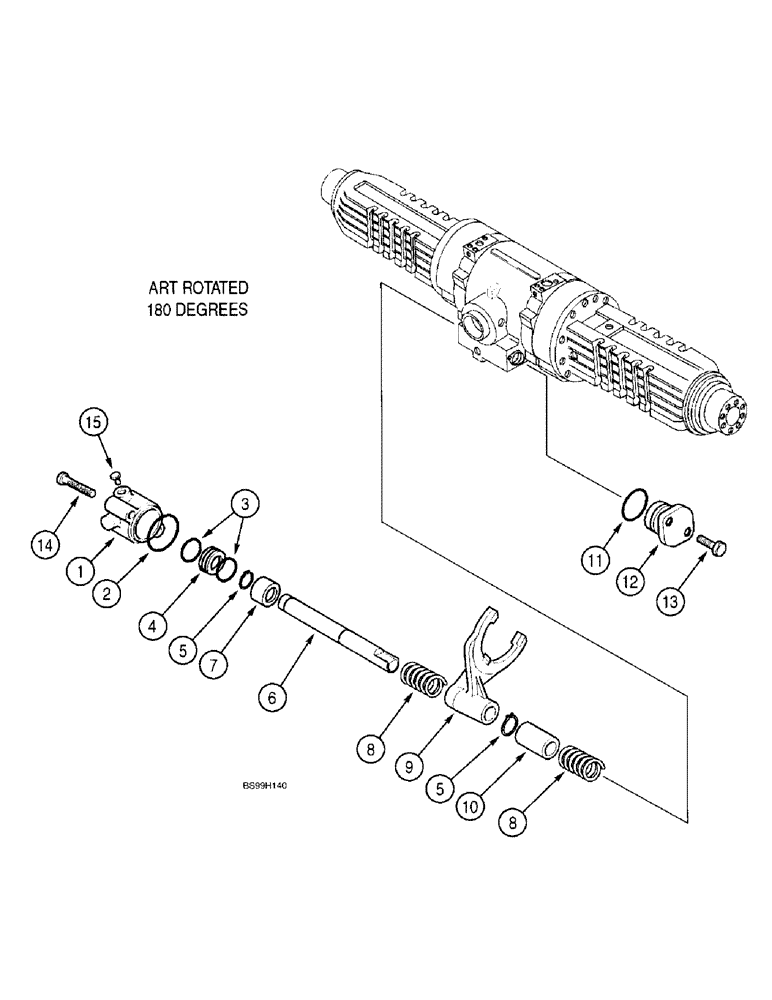

Запчасти Case 580L (6-110) - REAR DRIVE AXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

319063A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, parts list Figure 6-104 - 6-112, 7-5B and 7-5D, Includes: Ref. 1-15

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

292213A1

CYLINDER

differential lock

1шт.

2

305152A1

O-RING

cylinder

1шт.

3

292210A1

SEAL

O-RING seal, external, piston

2шт.

4

292212A1

PISTON

differential lock

1шт.

5

800-5120

SNAP RING,M20, Ext

RING external heavy retaining, No. 20

2шт.

6

292214A1

SHAFT

rail, shifter fork

1шт.

7

292902A1

RING

BUSHING shaft

1шт.

8

175966A1

SPRING

shaft

2шт.

9

175964A2

FORK

shift

1шт.

10

175965A1

BUSHING

rail

1шт.

11

128376A1

O-RING

cover

1шт.

12

175968A1

SUPPORT

COVER housing

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, Full thd, M8 x 1.25 x 30

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

hex, 8 - 1.25 x 80 mm

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG cylinder

1шт.
