(6-106) - REAR DRIVE AXLE, DIFFERENTIAL

Запчасти Case 580L (6-106) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

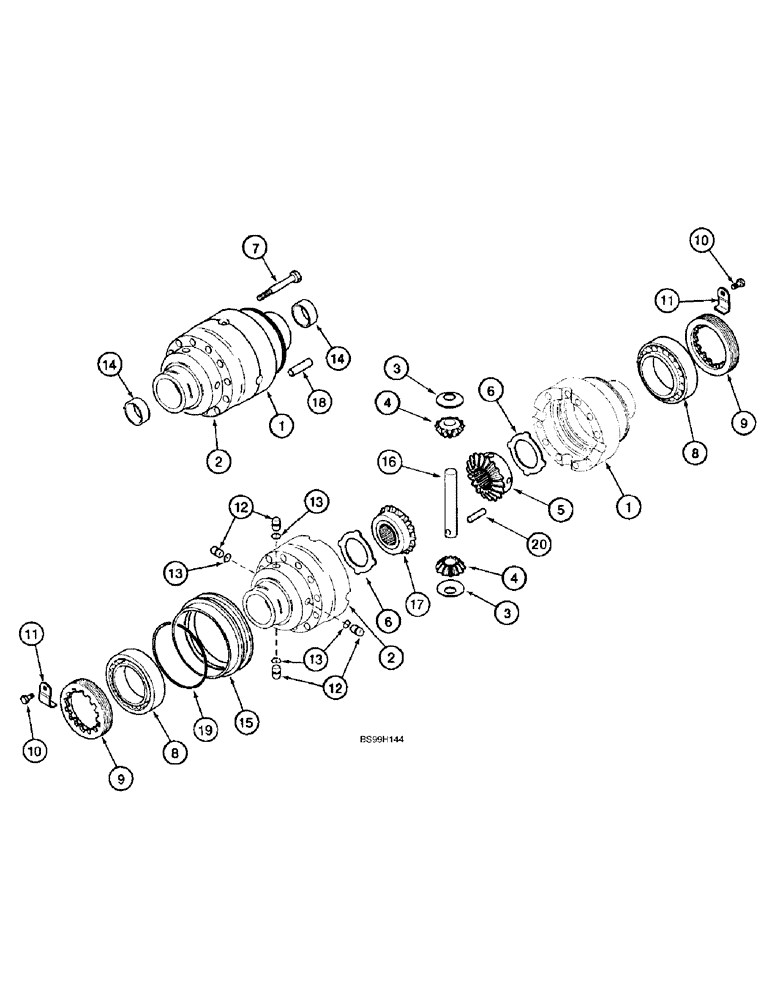

Схема запчастей Case 580L - (6-106) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN
1
4
10
10
14
15
4
11
3
20
18
13
5
19
12
6
16
8
13
3
1
11
2
12
2
9
9
14
13
7
17
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

319063A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, parts list Figure 6-104 - 6.112, 7-5B and 7-5D, Includes: Ref. 1-20, and P/N 292268A1

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

292268A1

HOUSING

ASSEMBLY, differential, Includes: Ref. 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

E135777

WASHER

thrust

2шт.

Part of Gear Set, P/N 367184A1

1шт.

4

190471A1

PINION

GEAR sun, 12 teeth, no longer sold separately, must be replaced as a set, for service order 367184A1 gear set, see below

2шт.

Part of gear set, P/N 367184A1

1шт.

5

D142971

PINION

GEAR side, pinion, no longer sold separately, must be replaced as a set, for service order 367184A1 gear set, see below

1шт.

Part of gear set, P/N 367184A1

1шт.

6

190469A1

THRUST WASHER

WASHER thrust

2шт.

Part of gear set, P/N 367184A1

1шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT hex, special, 12 - 1.75 x 90 mm, class 12.9

10шт.

8

69007

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

cup and cone

2шт.

9

P3034505

NUT

RING locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, self locking, special, 6 - 1 x 12 mm

2шт.

11

175959A1

BRACKET

lock

2шт.

12

292207A1

PIN

Housing

4шт.

13

292208A1

O-RING

pin

4шт.

14

190452A1

BUSHING

housing

2шт.

15

191067A1

SLEEVE

housing

1шт.

16

P6427894

SHAFT

sun gear, no longer sold separately, must be replaced as a set, for service order 367184A1 gear set, see below

1шт.

Part of gear set, P/N 367184A1

1шт.

17

292890A1

GEAR

side pinion, no longer sold separately, must be replaced as a set, for service order 367184A1 gear set, see below

1шт.

Part of gear set, P/N 367184A1

1шт.

18

D143033

DOWEL

PIN dowel, 12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING lock

1шт.

20

838-5840

LOCK PIN,M8 x 40, Slotted

PIN roll, 8 x 40 mm

1шт.

Part of gear set, P/N 367184A1

1шт.

367184A1

DIFFERENTIAL

SET gear, differential, service replacement, Includes Ref. 3 - 6, 16, 17, and 20

1шт.
