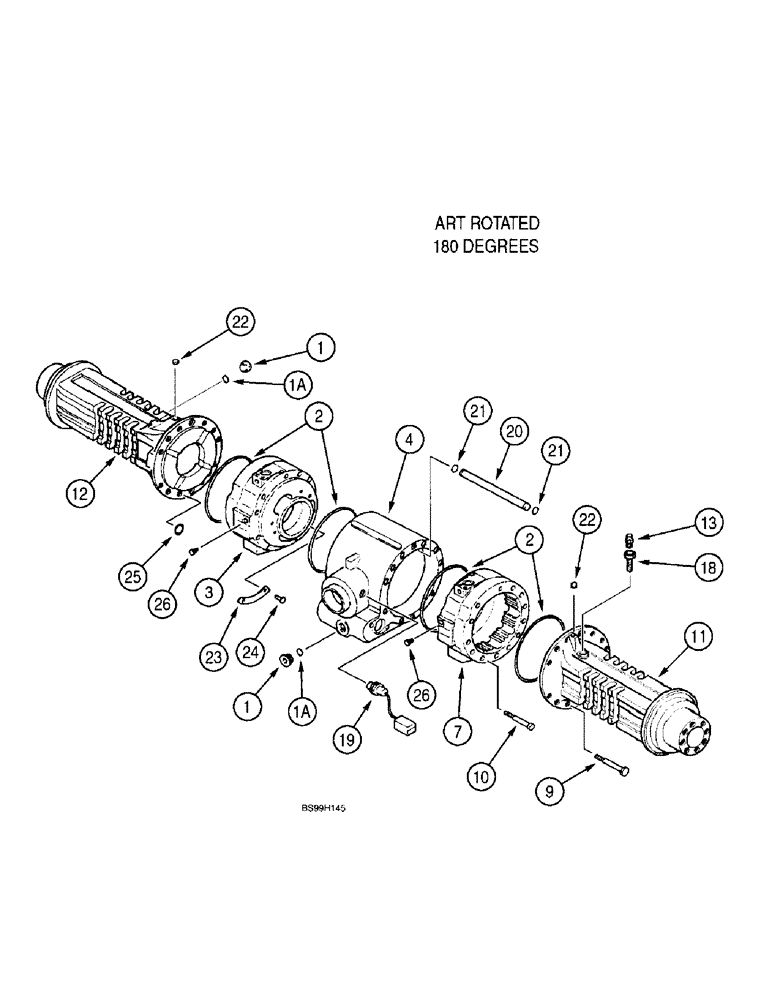

Запчасти Case 580L (6-104) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

319063A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, parts list Figure 6-104 - 6-112, 7-5B and 7-5D, Includes: Ref. 2-26

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, Includes: Ref. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

4шт.

3

445266A1

FLANGE

CYLINDER brake, Right-Hand; Replaces 308039A1

1шт.

4

367175A1

HUB

HOUSING center, axle

1шт.

7

445267A1

FLANGE

CYLINDER brake, Left-Hand; Replaces 308038A1

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12 - 1.75 x 130 mm

2шт.

11

358280A1

HUB

HOUSING axle, left hand side, with breather port

1шт.

12

358279A1

HUB

HOUSING axle, right hand side, without breather port

1шт.

13

1966149C2

BREATHER

axle housing

1шт.

175955A1

PLUG

Breather

1шт.

18

E135750

AXLE PIN

EXTENSION breather

1шт.

19

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires

1шт.

20

346584A1

TUBE

internal

1шт.

21

346583A1

O-RING

tube

2шт.

22

D142898

PLUG,M10 x 1

sealing, hole, if used

2шт.

23

347959A1

PLATE

brake cylinder

2шт.

24

347960A1

RIVET

4.8 x 6 mm

4шт.

25

P2230493

SEAL

O-RING special

8шт.

26

294245A1

CAP

PLUG 7/16 - 20 inch, if used

2шт.
