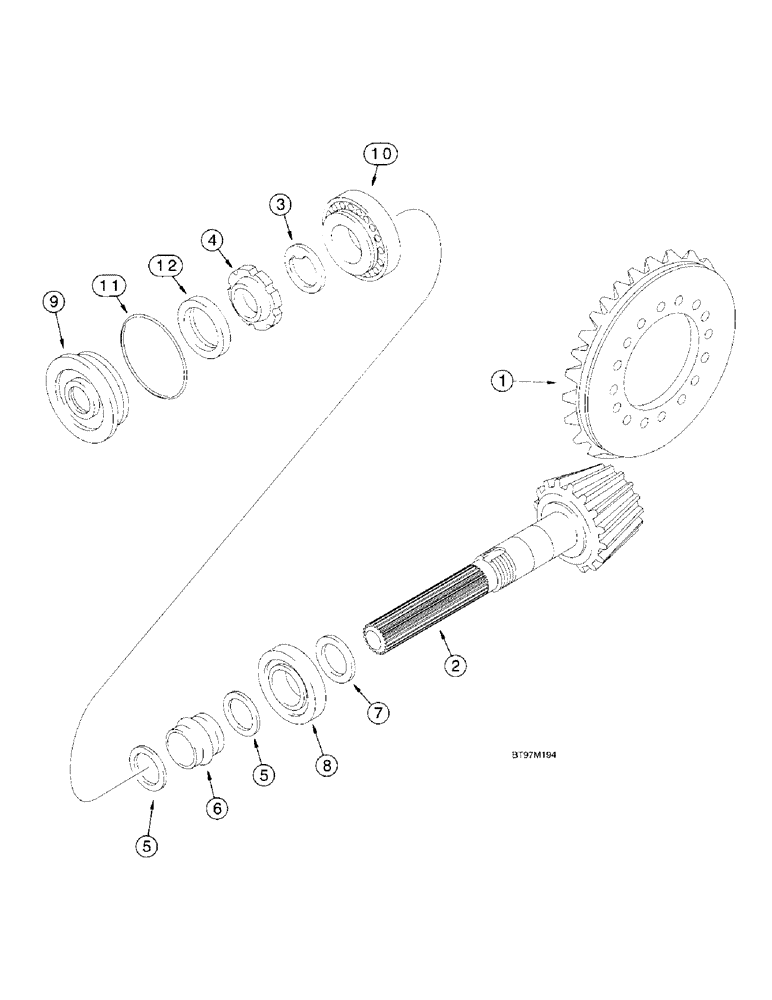

Запчасти Case 580L (6-098) - REAR DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

279172A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, parts list Fig. 6-94 - 6-102, 7-2 & 7-4, no longer avail., order 319063A1 axle, Fig. 6-104, 213-126 clevis, two of 322184A1 hose and 326348A1 yoke, see Fig. 7-8 & 7-12 for hose, clevis and yoke, Incl.: Ref. 1-12, P/N 175956A

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

175956A1

GEAR-SET

GEAR set, ring and pinion, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special

1шт.

4

K261014

RING NUT,M40 x 1.5

RING nut, pinion gear

1шт.

5

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer

2шт.

6

175957A1

SPACER

collapsible

1шт.

7

190506A1

SHIM,2.5mm Thk

(0.098") 2.5mm Thk

1шт.

7

190508A1

SHIM,2.6mm Thk

(0.102") 2.6mm Thk

1шт.

7

190509A1

SHIM,2.7mm Thk

(0.106") 2.7mm Thk

1шт.

7

190510A1

SHIM,2.8mm Thk

(0.110") 2.8mm Thk

1шт.

7

190511A1

SHIM,2.9mm Thk

(0.114") 2.9mm Thk

1шт.

7

190512A1

SHIM,3.0mm Thk

(0.118") 3.0mm Thk

1шт.

7

190513A1

SHIM,3.1mm Thk

(0.122") 3.1mm Thk

1шт.

7

190514A1

SHIM,3.2mm Thk

(0.125") 3.2mm Thk

1шт.

7

190515A1

SHIM,3.3mm Thk

(0.129") 3.3mm Thk

1шт.

7

190516A1

SHIM,3.4mm Thk

(0.133") 3.4mm Thk

1шт.

8

P1139855

BEARING

pinion gear

1шт.

9

128570A1

FLANGE

COVER differential

1шт.

10

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

1шт.

11

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.
