(6-096) - REAR DRIVE AXLE, DIFFERENTIAL

Запчасти Case 580L (6-096) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

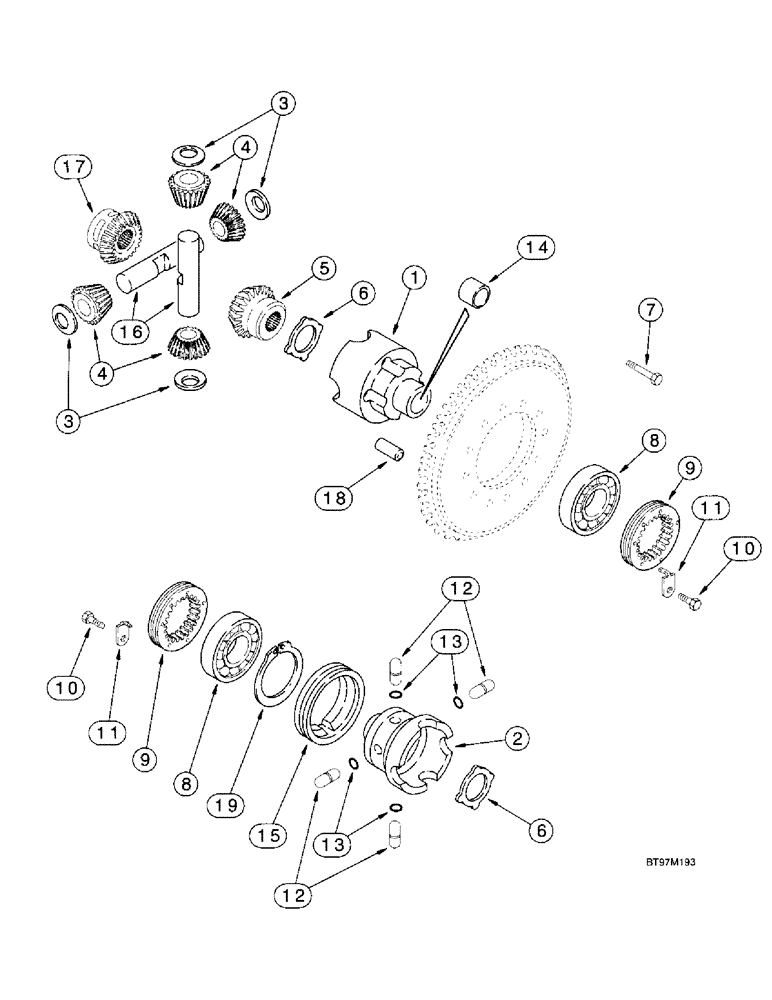

Схема запчастей Case 580L - (6-096) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN
14
19
2
15
3
12
3
13
11
6
13
9
9
12
5
1
10
8
4
17
8
4
7
11
6
10
16
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

279172A1

AXLE, REAR

AXLE ASSY, rear drive, parts list Fig. 6-94 - 6.102, 7-2 & 7-4, no longer avail., order 319063A1 axle, Fig. 6-104, 213-126 clevis, two of 322184A1 hose and 326348A1 yoke, see Fig. 7-8 & 7-12 for hose, clevis and yoke, Incl.: Ref. 3-19, and P/N 292268A1

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

292268A1

HOUSING

ASSEMBLY differential, Includes: Ref. 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

E135777

WASHER

thrust

4шт.

Part of gear set, P/N 294192A1

1шт.

4

190471A1

PINION

WASHER thrust

4шт.

Part of gear set, P/N 294192A1

1шт.

5

D142971

PINION

GEAR side, 12 teeth, no longer sold separately, must be replaced as a set, for service order 294192A1 gear set, see below

1шт.

Part of gear set, P/N 294192A1

1шт.

6

190469A1

THRUST WASHER

WASHER thrust

2шт.

Part of gear set, P/N 294192A1

1шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT hex, special, 12 - 1.75 x 90 mm, class 12.9

10шт.

8

E135785

BEARING

cup and cone

2шт.

9

P3034505

NUT

RING locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, self locking, special, 6 - 1 x 12 mm

2шт.

11

175959A1

BRACKET

lock

2шт.

12

292207A1

PIN

Housing

4шт.

13

292208A1

O-RING

pin

4шт.

14

190452A1

BUSHING

housing

2шт.

15

191067A1

SLEEVE

housing

1шт.

16

190468A1

SHAFT

sun gear, no longer sold separately, must be replaced as a set, for service order 294192A1 gear set, see below

2шт.

17

292890A1

GEAR

side pinion, no longer sold separately, must be replaced as a set, for service order 294192A1 gear set, see below

1шт.

18

D143033

DOWEL

PIN dowel, 12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING lock

1шт.

294192A1

SET

gear, differential, service replacement, Includes Ref. 3 - 6, 16, and 17

1шт.
