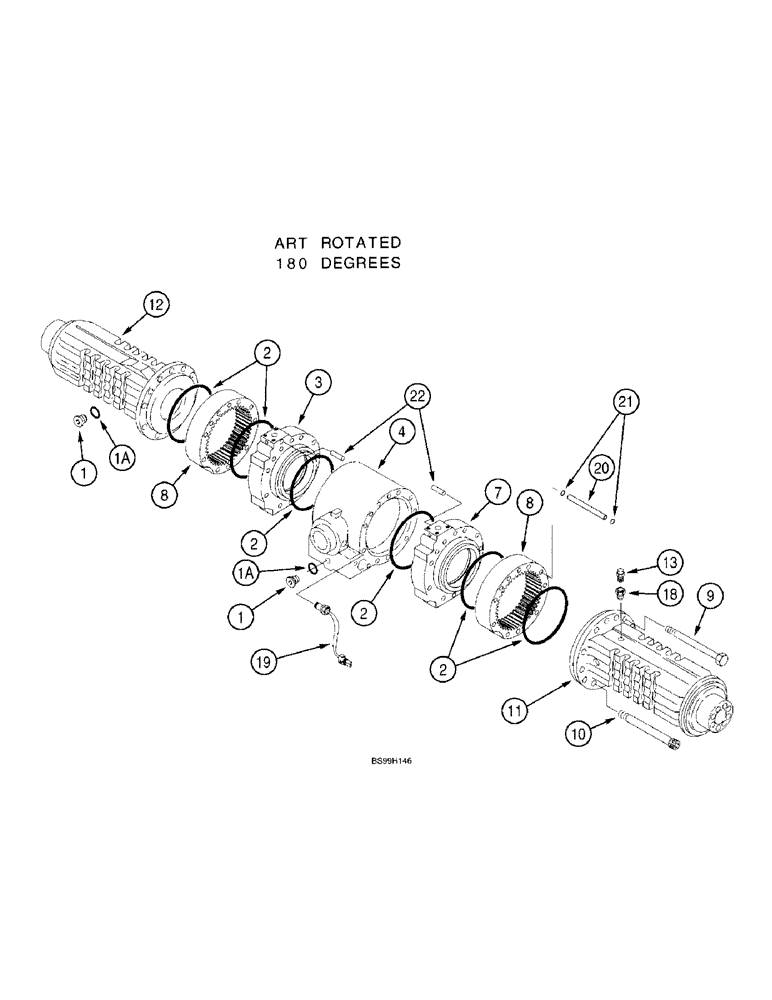

Запчасти Case 580L (6-094) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

279172A1

AXLE, REAR

AXLE ASSEMBLY, rear drive, parts list Fig. 6-94 - 6-102, 7-2 and 7-4, no longer available, order 319063A1 axle on Fig. 6-104, 213-126 clevis, two of 322184A1 hose and 326348A1 yoke, see Fig. 7-8 and 7-12 for hose, clevis and yoke, Incl.: Ref. 1 - 22

1шт.

87422526R

REMAN-REAR AXLE

570LXT, 580L, All Series 2, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, Includes: Ref. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

6шт.

3

190457A2

CYLINDER

brake, right hand, no longer available, order 315550A1 kit

1шт.

4

222689A1

HOUSING

center, axle

1шт.

7

190458A2

CYLINDER

brake, left hand, no longer available, order 315551A1 kit

1шт.

8

190459A1

FLANGE

SLEEVE gear housing

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12 - 1.75 x 130 mm

4шт.

11

295574A1

BEAM

HOUSING axle, left hand side

1шт.

12

295573A1

BEAM

HOUSING axle, right hand side

1шт.

13

1966149C2

BREATHER

axle housing

1шт.

18

E135750

AXLE PIN

EXTENSION breather

1шт.

19

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires

1шт.

20

222688A1

TUBE

internal

1шт.

21

Z2230493

O-RING,1.78mm Thk x 18.77mm ID

O-RING sealing, tube

2шт.

22

D142898

PLUG,M10 x 1

sealing, hole, if used

2шт.

315550A1

SET OF PARTS

KIT brake cylinder, Includes: 190457A2 cylinder and D142898 plug, right hand

1шт.

315551A1

SET OF PARTS

KIT brake cylinder, Includes: 190458A2 cylinder and D142898 plug, left hand

1шт.
