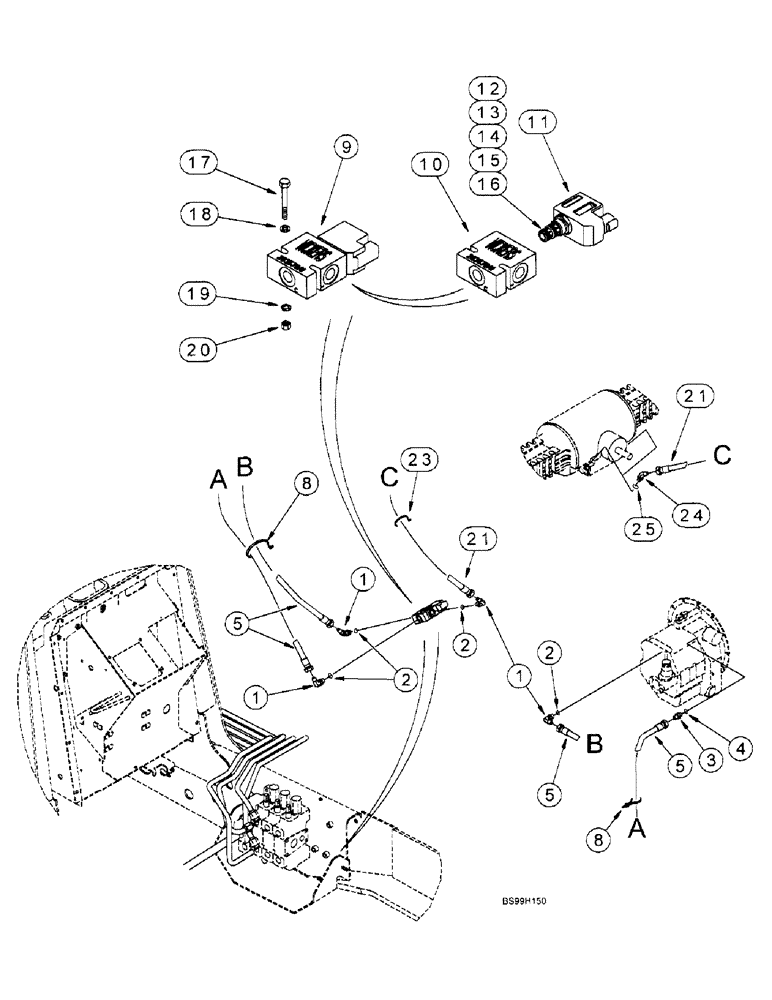

Запчасти Case 580L (6-090) - REAR AXLE DIFFERENTIAL LOCK, CHASSIS MOUNTED DIFFERENTIAL LOCK SOLENOID VALVE (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 2

4шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 4

1шт.

5

304019A1

HOSE

transmission supply and return lines, transmission to solenoid valve, 1200 mm, 47-1/4 inch long

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch

2шт.

9

283579A1

SOLENOID VALVE

VALVE ASSEMBLY, solenoid, differential lock, Includes: Ref. 10-11

1шт.

10

297255A1

JUNCTION BOX

MANIFOLD valve

1шт.

11

349295A1

SOLENOID VALVE

VALVE ASSEMBLY, differential lock solenoid, 12 volt, Replaces: 184505A1, Includes: Ref. 12-16 and jam nut

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE solenoid, cartridge, component parts are not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT jam

1шт.

17

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

304020A1

HOSE

solenoid valve to rear axle, 625 mm, 24-5/8 inch long

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 25

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
