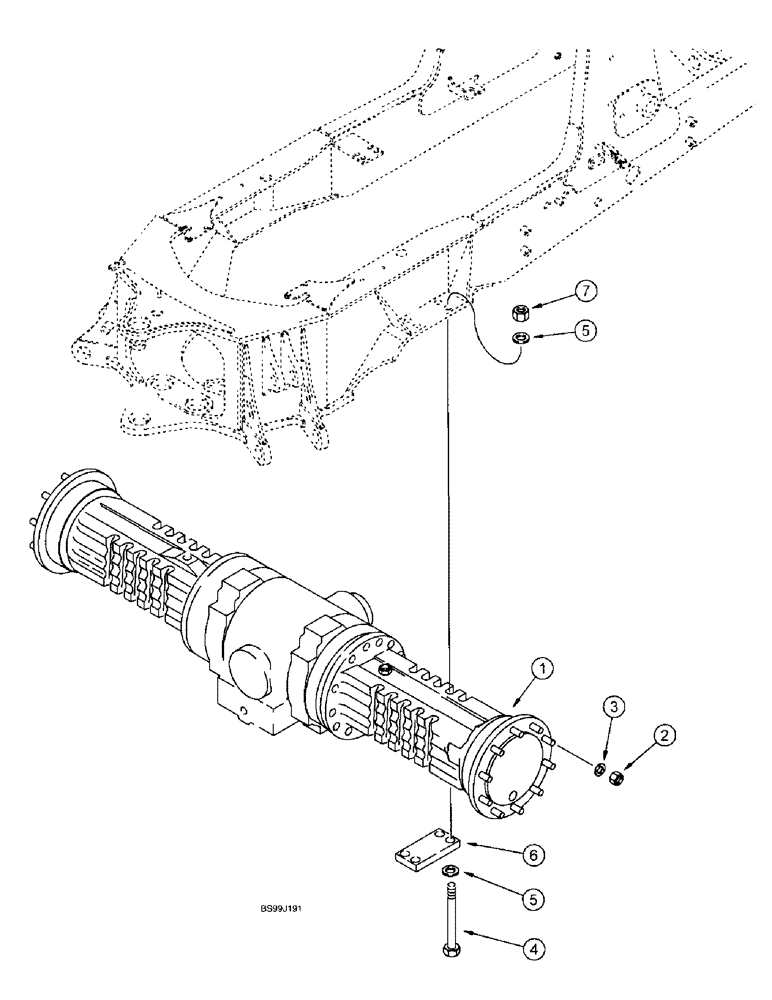

Запчасти Case 580L (6-088) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSEMBLY, rear drive, parts list Figure 6-94 - 6-102 or 6-104 - 6-112, and 7-2 -7-5D

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

hex, special, 22 mm - 1.5

20шт.

3

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

flat, hardened, special

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

- hex, 20 - 2.5 x 230 mm, class 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

16шт.

6

117933A1

LARGE PLATE

PLATE axle mounting

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
