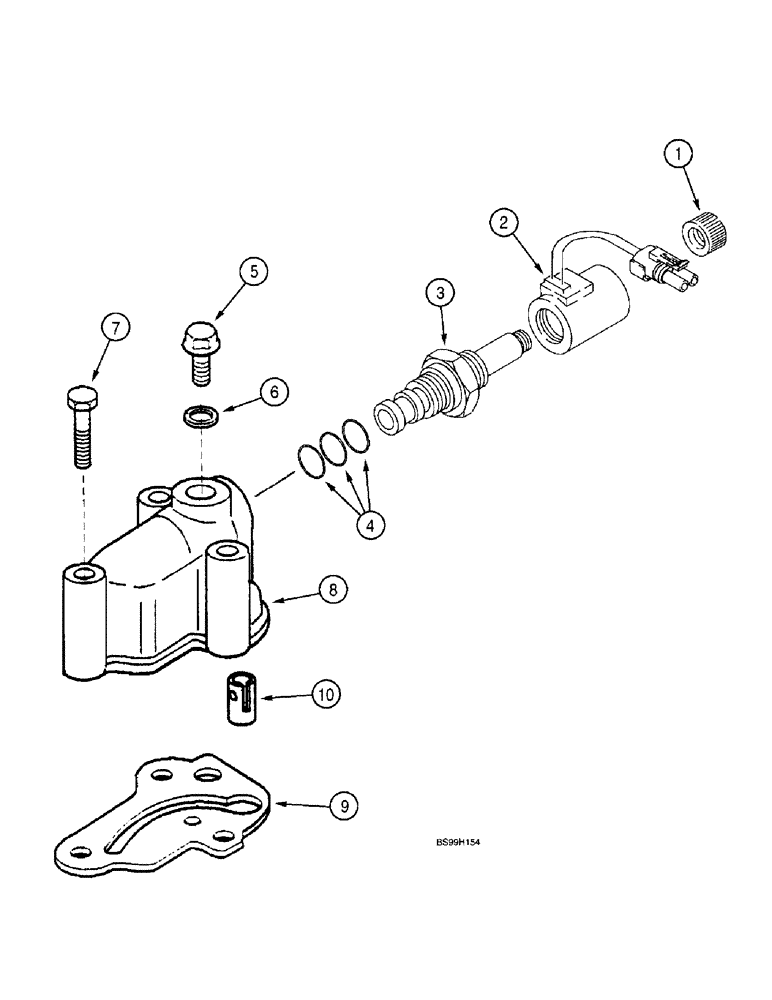

Запчасти Case 580L (6-084) - TRANSMISSION ASSEMBLY, SOLENOID VALVE - FOUR WHEEL DRIVE (06) - POWER TRAIN

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84, Includes: Ref. 5-10 and P/N 190432A1

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY, solenoid, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT seal, solenoid, Includes: one each of 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order 190432A1 valve

1шт.

5

181100A1

PLUG,1/8 CAS x 8

valve

1шт.

6

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

321428A1

HOUSING

BODY solenoid valve

1шт.

9

366910A1

GASKET

GASKET body to transmission housing

1шт.

10

190431A1

VALVE

solenoid, installed between Ref. 8 and Ref. 9

1шт.
