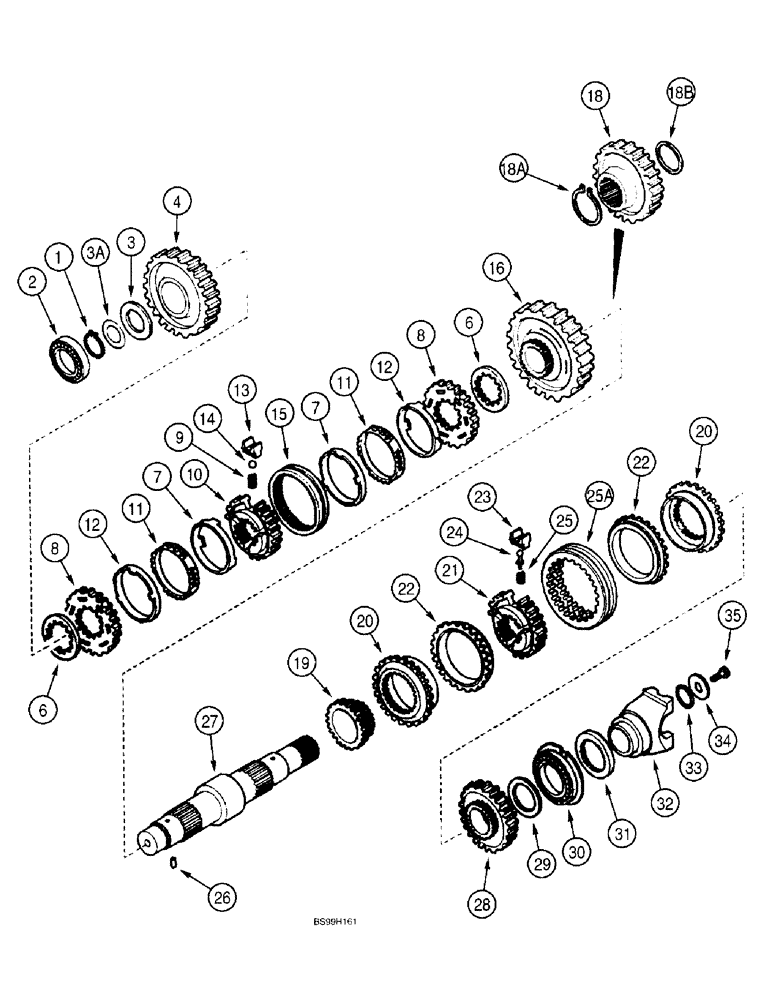

Запчасти Case 580L (6-074) - TRANSMISSION ASSEMBLY, SECONDARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A3R

REMAN-TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84, Includes: Ref. 1-6, 16-19, 26-35, and P/N's 190427A1, 366398A1

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING lock

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING roller

1шт.

3

358649A1

THRUST WASHER

thrust

1шт.

3a

358650A1

SHIM,0.05mm Thk

0.05 mm

1шт.

3a

358651A1

SHIM,0.1mm Thk

0.10 mm

1шт.

3a

358652A1

SHIM,0.3mm Thk

0.30 mm

1шт.

3a

196454A1

SHIM,0.5mm Thk

0.50 mm thick

1шт.

4

358648A1

PINION,43T

GEAR driven, second, 43 teeth

1шт.

6

244109A1

SPACER

gear to synchronizer ring

4шт.

190427A1

SYNCHRONIZER,90T

KIT synchronizing service, component parts not serviced separately, Includes: Ref. 7-15

1шт.

7

NSS

NOT SOLD SEPARAT

RING friction

2шт.

8

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

9

NSS

NOT SOLD SEPARAT

SPRING hub

3шт.

10

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

11

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

12

NSS

NOT SOLD SEPARAT

RING steel

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE spring

3шт.

14

NSS

NOT SOLD SEPARAT

BALL hub

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

16

358647A1

PINION,49T

GEAR driven, first, 49 teeth

1шт.

18

358656A1

GEAR,44T

drive, MFD, 580L models, four wheel drive

1шт.

18a

358654A1

RING, SNAP,65.5mm ID, Ext

RING snap, four wheel drive

1шт.

18b

358655A1

RING, SNAP,67.4mm ID, Ext

RING retaining, four wheel drive

1шт.

19

358282A1

GEAR,23T

driven, fourth, 23 teeth

1шт.

366398A1

SYNCHRONIZER

KIT synchronizing service, component parts not serviced separately, Includes: Ref. 20-25A

1шт.

20

NSS

NOT SOLD SEPARAT

RING clutch

2шт.

21

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

22

NSS

NOT SOLD SEPARAT

RING friction

2шт.

23

NSS

NOT SOLD SEPARAT

PLATE spring

3шт.

24

NSS

NOT SOLD SEPARAT

PIN hub

3шт.

25

NSS

NOT SOLD SEPARAT

SPRING hub

3шт.

25a

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN roll

1шт.

27

366366A1

SHAFT

secondary, two wheel drive

1шт.

27

358653A1

SHAFT

secondary, four wheel drive

1шт.

28

358283A1

DRIVEN GEAR,33T

GEAR, DRIVEN, third, 33 teeth

1шт.

29

358639A1

WASHER

thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

BEARING ball

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

SEAL oil, 60 x 75 x 8 mm

1шт.

32

233284A1

YOKE

shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

flat, special, 52 x 12.5 x 5 mm

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

locking, special, 12 - 1.25 x 25 mm

1шт.
