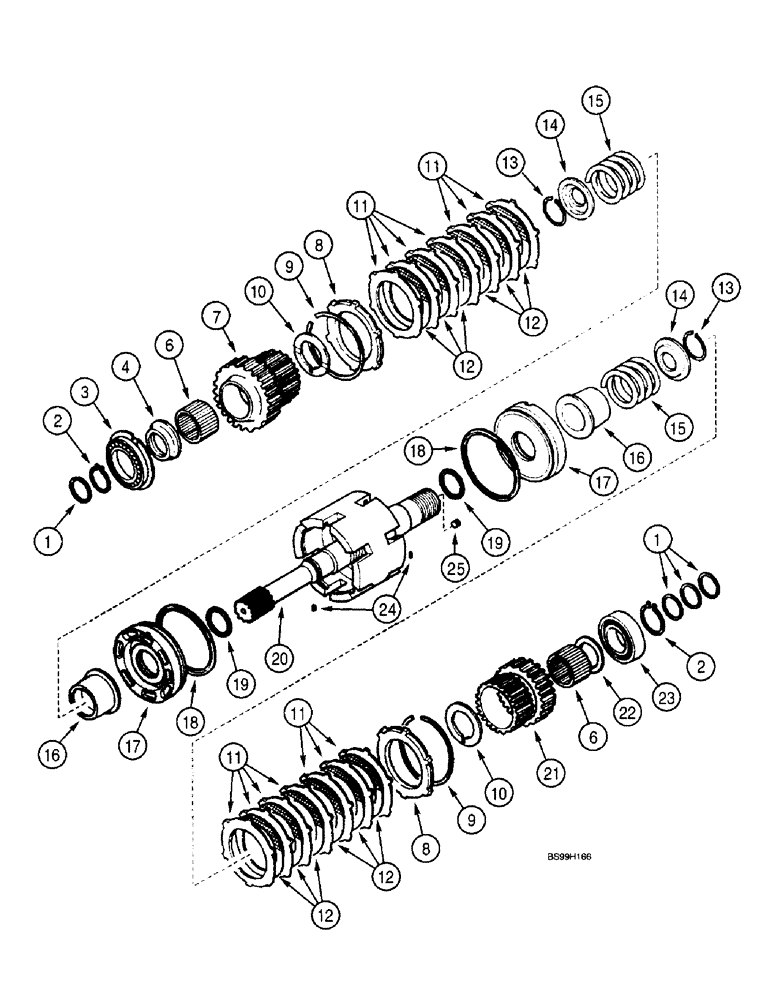

Запчасти Case 580L (6-072) - TRANSMISSION ASSEMBLY, INPUT SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84, Includes: Ref. 1-25

1шт.

1

358645A1

SEALING RING

SEAL oil

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

4

358635A1

SPACER

bearing, 68 x 45 x 105 mm

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

BEARING needle

2шт.

7

358632A1

PINION,35T

GEAR input shaft, 35 teeth, 580L models

1шт.

7

366318A1

GEAR

input shaft, 29 teeth, 570LXT models

1шт.

8

310519A1

PLATE

thrust, 6.2 mm thick tabs

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING lock

2шт.

10

358640A1

WASHER

WASHER, THRUST

2шт.

11

181159A1

DISC

PLATE disc, intermediate

14шт.

12

181158A1

CLUTCH DISC

PLATE disc, clutch

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING snap

2шт.

14

181161A1

PLATE, THRUST

PLATE pressure

2шт.

15

358637A1

SPRING

detent

2шт.

16

358641A1

TRANSMISSION SLEEVE

SLEEVE clutch

2шт.

17

358644A1

PISTON

shaft

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

RING seal

2шт.

19

358642A1

SEALING RING

RING seal, small

2шт.

20

358631A1

SHAFT

input

1шт.

21

358638A1

PINION,39T

GEAR shaft, 29 teeth

1шт.

22

358639A1

WASHER

thrust, 68 x 45 x 4 mm

1шт.

23

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN roll

2шт.

25

D142898

PLUG,M10 x 1

shaft

2шт.
