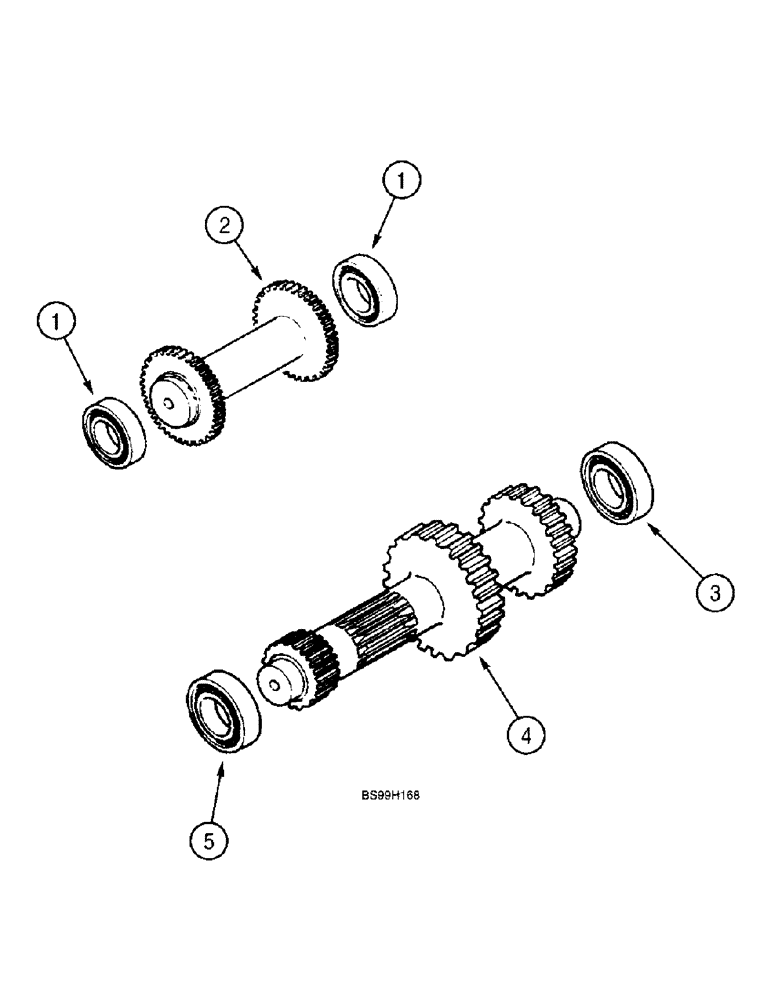

Запчасти Case 580L (6-070) - TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A3R

REMAN-TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84, Includes: Ref. 1-6

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

2шт.

2

358636A1

SHAFT,27T

idler, 580L models

1шт.

2

366237A1

SHAFT

idler, 570LXT models

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

4

358646A1

SHAFT

primary

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING roller

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

1шт.
