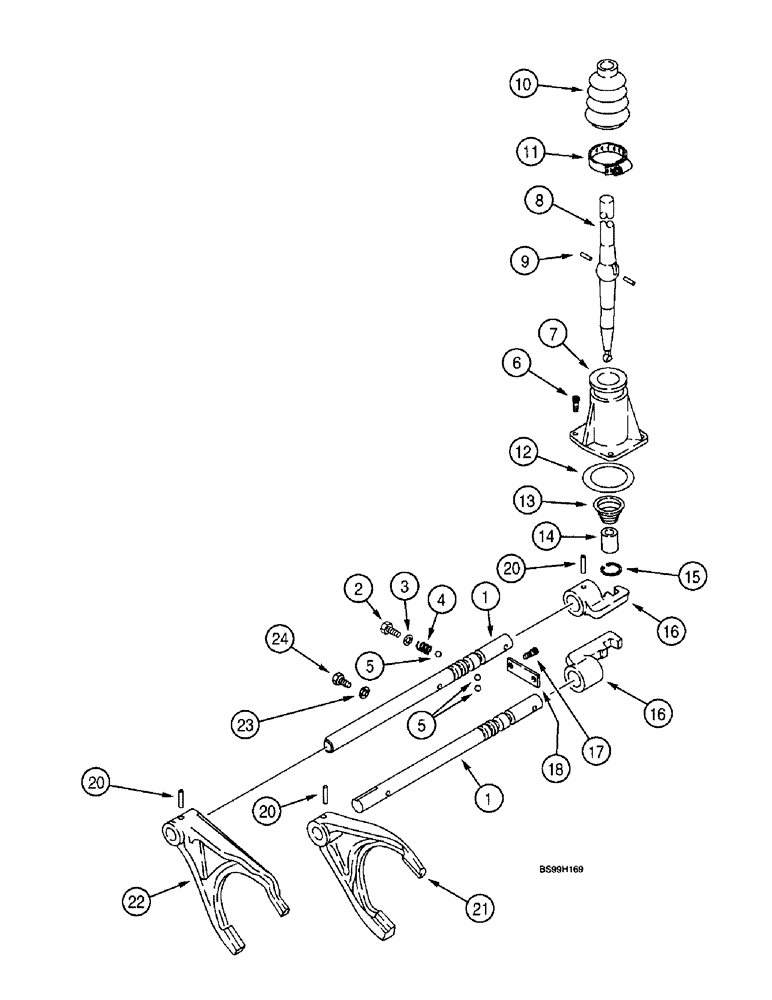

Запчасти Case 580L (6-068) - TRANSMISSION ASSEMBLY, TRANSMISSION SHIFTER MECHANISM, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329081A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-82

1шт.

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 - 6-84, Includes: Ref. 1-24

1шт.

1

181245A2

SHIFT RAIL

RAIL, SHIFT, Fork, First and second, third and fourth

2шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 16 mm

2шт.

3

1966835C1

SEALING WASHER

flat, special, 12 x 16 x 1.5 mm

2шт.

4

1966993C1

SPRING

detent

2шт.

5

181139A1

BALL,10mm OD

detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

7

181171A1

COVER

shift lever

1шт.

8

190428A3

LEVER

Shift

1шт.

9

1967585C1

PIN

shift lever

2шт.

10

1967581C1

BOOT

rubber

1шт.

11

181177A1

CLAMP

adjustable

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

sealing

1шт.

13

278533A1

SPRING

shift lever

1шт.

14

278532A1

BUSHING

Shift lever

1шт.

15

279039A1

RING, SNAP

RING external retaining

1шт.

16

181173A1

SELECTOR

SHIFTER rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT hex socket, 10 - 1.5 x 25 mm

2шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

20

905794R1

PIN,M6 x 30, Coiled

roll, 6 x 30 mm

4шт.

21

181203A1

SHIFTER FORK

FORK gear shift, first and second

1шт.

22

366909A1

SHIFTER FORK

FORK gear shift, third and fourth

1шт.

23

181104A1

COPPER WASHER

WASHER sealing, copper

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

1шт.
