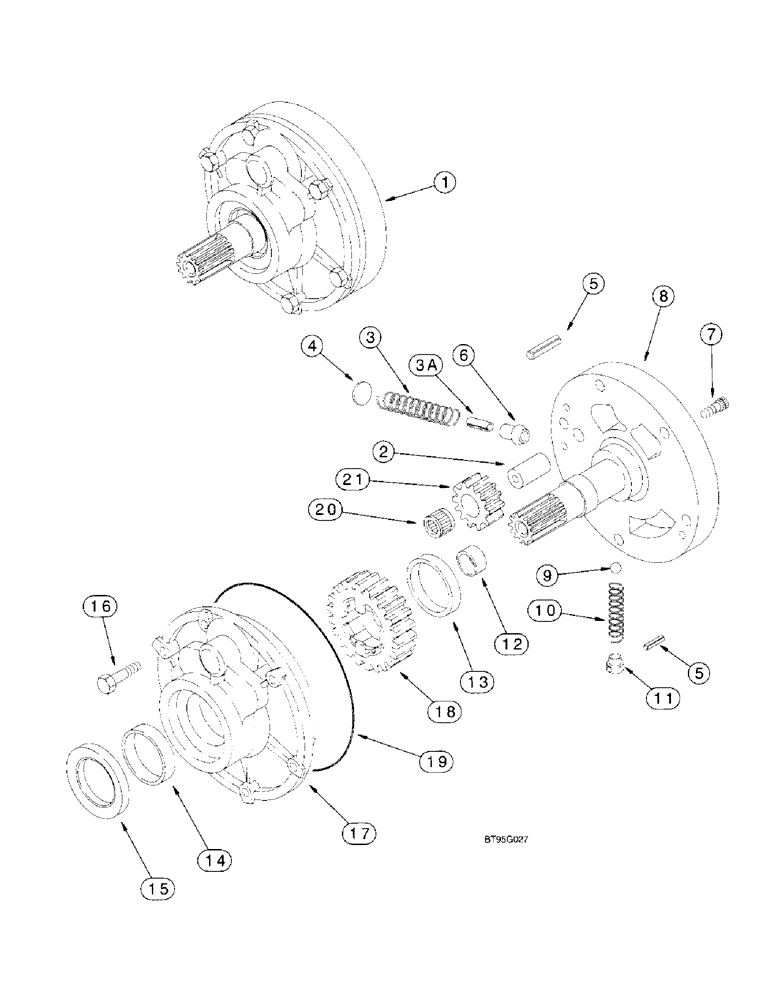

Запчасти Case 580L (6-066) - TRANSMISSION ASSEMBLY, OIL PUMP, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSY., 2WD, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-82

1шт.

329081A1

TRANSMISSION

ASSY., 2WD, 570LXT models, new with integrated differential lock solenoid valve, parts list figure 6-60 thru 6-82

1шт.

329081A3R

REMAN-TRANSMISSION

ASSY., 2WD, 570LXT models, new with integrated differential lock solenoid valve, parts list figure 6-60 thru 6-82

1шт.

329081A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSY., 4WD, 580L models, new with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSY., 4WD, 580L models, new with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSY., 4WD, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84, Inc.: Ref. 1-21

1шт.

1

181199A4

PUMP

ASSEMBLY, oil, transmission, Carraro No. CA134725

1шт.

1

181199A4R

REMAN-HYD PUMP

570LXT Series 2, 580L Series 2.

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

247744A1

SHAFT

small, not available for service, order 181199A4 pump

1шт.

3

181270A1

SPRING

detent, not available for service, order 181199A4 pump

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN valve, order 247749A1 piston valve kit below

1шт.

Piston Valve Kit, not available for service, order 181199A4 pump, P/N 247749A1

1шт.

4

198713A1

WASHER

STOP spring, not available for service, order 181199A4 pump

1шт.

5

181109A1

SPLIT PIN

PIN roll, 5 x 22 mm, not available for service, order 181199A4 pump

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE piston, order 247749A1 piston valve kit below

1шт.

Piston Valve Kit, not available for service order 181199A4 pump. P/N 247749A1

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order 181199A4 pump Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT pump

1шт.

9

181145A1

BALL

check, not available for service, order 181199A4 pump

1шт.

10

181214A1

SPRING

detent, not available for service, order 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE spring, not available for service, order 181199A4 pump

1шт.

12

181215A1

BUSHING

pump support, small, not available for service, order 181199A4 pump

1шт.

13

247746A1

BUSHING

pump support, large, not available for service, order 181199A4 pump

1шт.

14

181216A1

BUSHING

pump housing

1шт.

15

181205A1

OIL SEAL

SEAL oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING oil pump

1шт.

18

247748A1

PINION

GEAR 23 teeth, charge pump, large, not available for service, order 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING needle, not available for service, order 181199A4 pump

1шт.

21

181218A1

PINION

GEAR small, 12 teeth, not available for service, order 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT piston valve, Includes: Ref. 3A and 6, not available for service, order 181199A4 pump

1шт.
