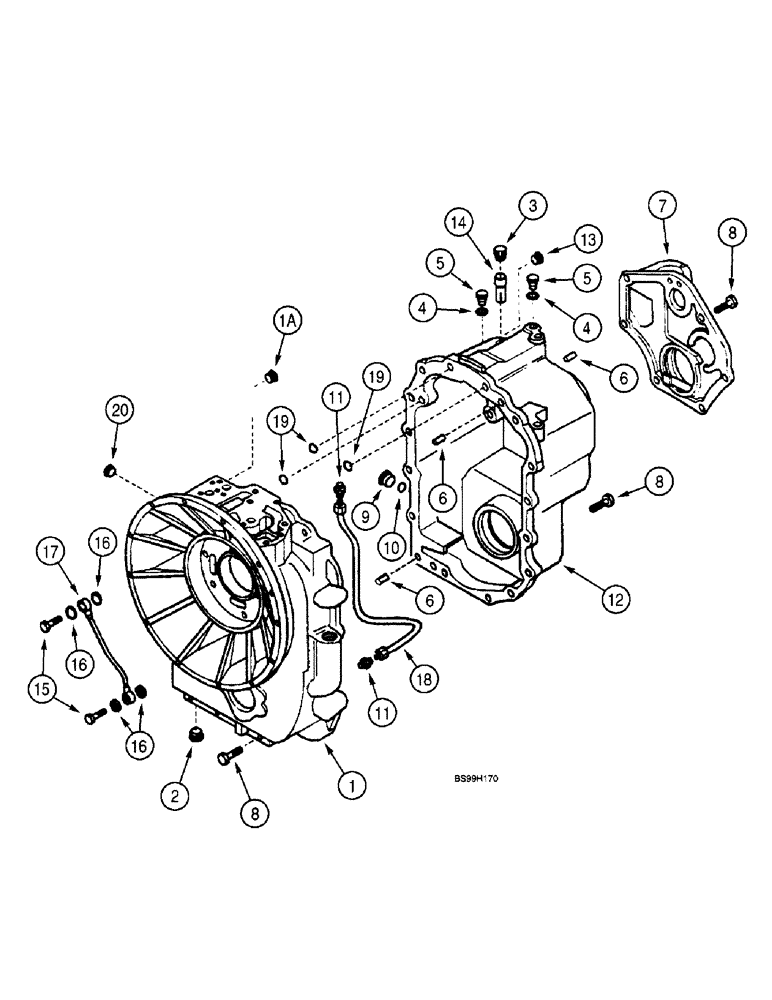

Запчасти Case 580L (6-064) - TRANSMISSION ASSEMBLY, TRANSMISSION HOUSING - FOUR WHEEL DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
329079A1
TRANSMISSION
ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84
1шт.
329082A1
TRANSMISSION
ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84, Includes: Ref. 1, 2-9, 11-12, 15-20, & P/N 310772A1
1шт.
1
310766A1
HOUSING
front half, use with Loctite 510 or 518 as a gasket eliminator, Includes: Ref. 1A
1шт.
1a
E135809
PLUG
housing
1шт.
2
239606A1
PLUG
housing, oil passage port
1шт.
310772A1
VENTILATION PIPE,18 mm OD, 42 mm Length
TUBE, Oil, Breather, 18 OD x 42 mm long, Not shown
1шт.
4
934667R1
SEALING RING,M10 x 14 x 1
WASHER - flat, copper, special, 10 x 14 x 1 mm
3шт.
5
181100A1
PLUG,1/8 CAS x 8
housing
3шт.
6
K260177
PIN
dowel, special, 10 x 25 mm
3шт.
7
181197A1
COVER
housing, rear half, use with Superbond 539 as a gasket eliminator
1шт.
8
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
Full Thd Hex, M10 x 30, 8.8
23шт.
9
100557A1
PLUG, DRAIN,M30 x 2
PLUG drain, Includes: Ref. 10
1шт.
10
238-6121
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
1шт.
11
218-1023
HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF
ADAPTER straight, 1/2-20 flare x 1/4 inch PT
2шт.
12
310765A1
HOUSING
rear half, use with Superbond 539 as a gasket eliminator, Includes: Ref. 13-14
1шт.
13
E135809
PLUG
housing, if used
1шт.
14
310772A1
VENTILATION PIPE,18 mm OD, 42 mm Length
TUBE, Oil, Breather, 18 OD x 42 mm long
1шт.
15
181179A1
BANJO BOLT
BOLT, BANJO, Hex, Special
2шт.
16
181105A1
SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk
WASHER flat, copper, special, 14 x 20 x 1.5 mm
4шт.
17
181232A1
TUBE
oil lubrication
1шт.
18
181176A1
TUBE
oil
1шт.
19
181141A1
O-RING,17.12mm ID x 2.62mm Width
housing
3шт.
20
181101A1
PLUG,M14 x 1.5
M14 x 1.5
1шт.
Выбрано товаров: 24
