Запчасти Case 580L (6-060) - TRANSMISSION ASSEMBLY, OIL FILTERS, TWO WHEEL AND FOUR WHEEL DRIVE (06) - POWER TRAIN

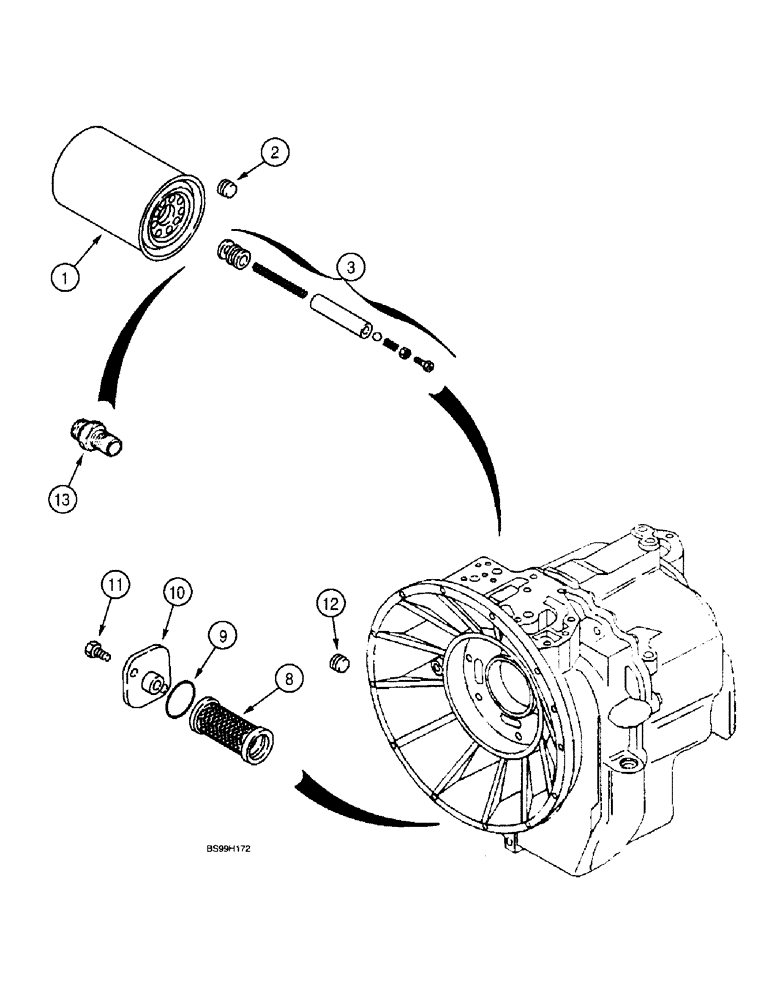

Схема запчастей Case 580L - (6-060) - TRANSMISSION ASSEMBLY, OIL FILTERS, TWO WHEEL AND FOUR WHEEL DRIVE (06) - POWER TRAIN
3
1
11
8
12
13
2
10
9

Артикул

Название

Примечание

Количество

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-82

1шт.

329081A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-82

1шт.

329081A3R

REMAN-TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-82

1шт.

329081A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

329082A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-60 thru 6-84, Includes: Ref. 1-13

1шт.

1

254686A1

FILTER CARTRIDGE,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

FILTER oil, cartridge, transmission, 152 mm, 6 inch long

1шт.

2

181101A1

PLUG,M14 x 1.5

oil, 14 - 1.5 mm, used on four wheel drive models only

1шт.

3

181274A1

REPAIR KIT

KIT valve, used on four wheel drive models only

1шт.

8

278534A1

FILTER SCREEN

FILTER oil

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

sealing

1шт.

10

181219A1

COVER

access, oil filter

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 18 mm

2шт.

12

181102A1

PLUG

oil, used on four wheel drive models only

1шт.

13

181202A1

FITTING

CONNECTOR straight

1шт.

Выбрано товаров: 17
