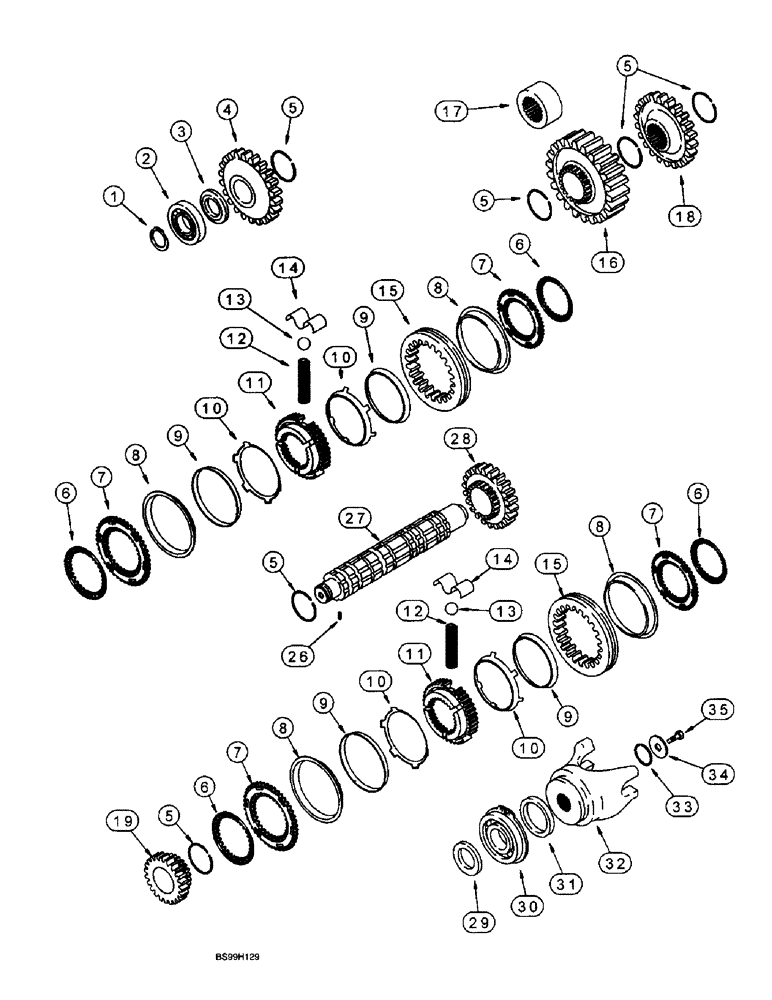

Запчасти Case 580L (6-048) - TRANSMISSION ASSEMBLY, SECONDARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A3

TRANSMISSION

TRANSMISSION ASSEMBLY, 2WD, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 thru 6-56, Replaces: 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329076A1 transmission, see Figure 6-60.

1шт.

123843A3R

REMAN-TRANSMISSION

580L SERIES-2, Two Wheel Drive, Case Part Number 123842A3R Has A Supplier P/N Of 137373, Verify The Unit That Is Being Removed From The Tractor Has This Supplier P/N

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

130786A3

TRANSMISSION

TRANSMISSION ASSEMBLY, 2WD, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 thru 6-56, Replaces: 130786A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329081A1 transmission, see Figure 6-60.

1шт.

130786A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

130786A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

TRANSMISSION ASSEMBLY, 4WD, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 thru 6-58, Replaces: 123843A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329079A1 transmission, see Figure 6-60.

1шт.

130787A3

TRANSMISSION

TRANSMISSION ASSY, 4WD, 570LXT models, new, w/ integrated diff. lock solenoid valve, parts list Fig. 6-32 - 6-58, Replaces: 130787A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig. 6-90, Incl.: Ref. 1-5, 16-35, P/N 190427A1

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329079A1 transmission, see Figure 6-60.

1шт.

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING, LOCK RING lock

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING roller

1шт.

3

181193A1

THRUST WASHER

WASHER thrust, 64 x 40 mm

1шт.

4

181190A1

PINION,43T

GEAR driven, second, 43 teeth

1шт.

5

181114A1

RING, SNAP

RING SNAP RING snap

6шт.

190427A1

SYNCHRONIZER,90T

KIT synchronizing service, Includes: Ref. 6-15

2шт.

Part of synchronizer service kit 256888A3

1шт.

6

244109A1

SPACER

SPACER gear to synchronizer ring

4шт.

Part of synchronizer service kit 256888A3

1шт.

7

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

8

NSS

NOT SOLD SEPARAT

RING synchronizer, flanged

2шт.

9

NSS

NOT SOLD SEPARAT

SPACER hub

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER spacer

2шт.

11

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING hub

3шт.

13

NSS

NOT SOLD SEPARAT

BALL hub

3шт.

14

NSS

NOT SOLD SEPARAT

PLATE spring

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

16

181189A1

PINION,49T

GEAR driven, first

1шт.

17

181226A1

SPACER

SPACER gear, 2WD models

1шт.

18

181224A1

PINION,44T

GEAR drive, MFD, 580L models

1шт.

18

181220A1

GEAR

GEAR drive 43 teeth, 570LXT models, no longer available, order 308485A1 gear set which includes 181224A1 drive gear above and 181223A1 drive gear, Ref. 11 on Figure 6-52

1шт.

19

181192A1

PINION,23T

GEAR driven, fourth

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN roll

1шт.

27

181183A1

SHAFT

Secondary (Rear Output Shaft)

1шт.

28

181191A1

PINION,33T

GEAR driven, third

1шт.

29

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

32

233284A1

YOKE

shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

WASHER flat, special

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

locking, special, 12 - 1.25 x 25 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: 190427A1 Kit Ref 6 - 15; plus parts on Figures 6-040, 6-046, 6-048. Also incl 190436A1 spring, Ref 37 on 6-054. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
