Запчасти Case 580L (6-046) - TRANSMISSION ASSEMBLY, INPUT SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

REF

INSTRUCTION

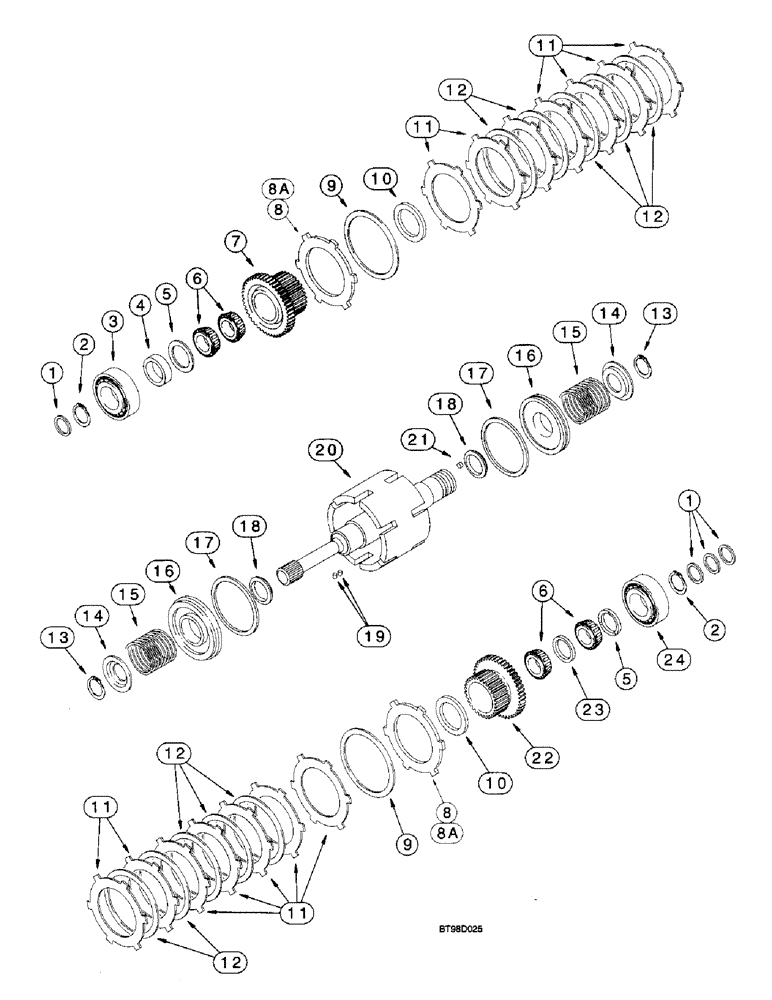

TRANSMISSION ASSEMBLY, 2WD or 4WD, 580L or 570LXT, see Figure 6-32 for 123842A3, 123843A3, 130786A3 and 20898A3 transmission descriptions, parts list Figure 6-32 thru 6-58, Includes: Ref. 1-24

1шт.

See Figure 6-32 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

1

181152A3

SEAL,Locking, 40.95mm ID x 45.01mm OD x 2.26mm Thk

SEAL oil

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

4

181153A1

SPACER

bearing

1шт.

5

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER thrust, 65 x 45 mm

2шт.

6

181135A1

BEARING, NEEDLE,50mm ID x 55mm OD x 17mm W

BEARING needle

4шт.

7

181228A2

PINION

GEAR input shaft, 35 teeth, 580L models

1шт.

7

181229A1

GEAR

input shaft, 29 teeth, 570LXT models

1шт.

8

181162A1

PLATE

thrust, 3.7 mm thick tabs, no longer used, order Ref. 8A

2шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

8a

310519A1

PLATE

thrust, 6.2 mm thick tabs

2шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING lock

2шт.

10

181163A1

THRUST WASHER

WASHER thrust

2шт.

11

181159A1

DISC

PLATE disc, intermediate

14-16шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

12

181158A1

CLUTCH DISC

PLATE disc, clutch

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING snap

2шт.

14

181161A1

PLATE, THRUST

PLATE pressure

2шт.

15

181160A2

SPRING

Detent, Replaces: 181160A1 spring, no longer included in transmission assembly, No Longer Included in 256888A3 synchronizer kit

2шт.

16

181155A2

PISTON

Input shaft, Replaces: 181155A1 piston, no longer included in transmission assembly, included in 256888A3 synchronizer kit

2шт.

Part of synchronizer service kit 256888A3

1шт.

17

181157A3

SEAL,Locking, 131.16mm ID x 138.28mm OD x 2.97mm Thk

RING seal

2шт.

18

181156A3

SEAL,Locking, 49.91mm ID x 54.99mm OD x 2.46mm Thk

RING seal, small

2шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN roll

4шт.

20

298203A1

SHAFT

input

1шт.

21

D142898

PLUG,M10 x 1

input shaft

1шт.

22

181227A2

PINION

GEAR shaft, 29 teeth

1шт.

23

181164A1

SPACER

bearing

1шт.

24

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

256888A3

SYNCHRONIZER

KIT, Replaces: 256888A2 kit; Incl: Ref 16; plus parts on Figures 6-040, 6-046, 6-048. Also incl 190436A1 spring, Ref 37 on 6-054. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
