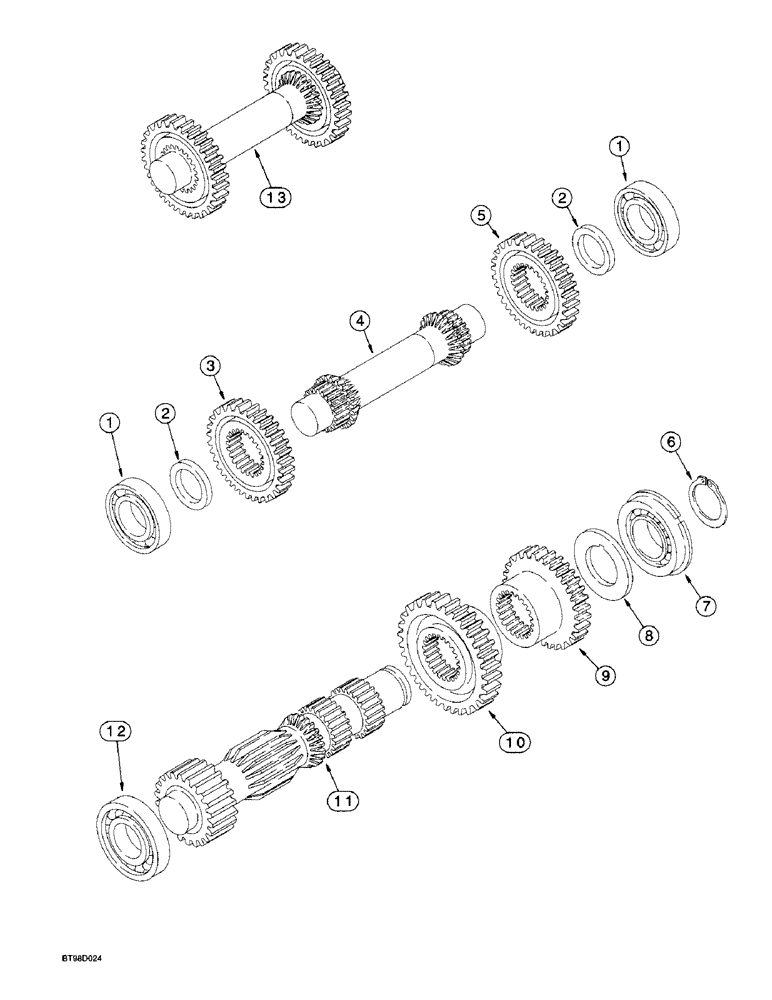

Запчасти Case 580L (6-044) - TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A3

TRANSMISSION

TRANSMISSION ASSY., 2WD, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 - 6-56, Replaces: 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329076A1 transmission, see Figure 6-60

1шт.

123842A3R

REMAN-TRANSMISSION

580L SERIES-2, Two Wheel Drive, Case Part Number 123842A3R Has A Supplier P/N Of 137373. Verify That The Unit Being Removed From The Tractor Has This Supplier Part Number

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

130786A3

TRANSMISSION

TRANSMISSION ASSY., 2WD, 570LXT models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 - 6-56, Replaces: 130786A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329081A1 transmission, see Figure 6-60

1шт.

130786A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

130786A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

TRANSMISSION ASSY., 4WD, 580L models, new, with integrated differential lock solenoid valve, parts list Figure 6-32 - 6-58, Replaces: 123843A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329079A1 transmission, see Figure 6-60

1шт.

130787A3

TRANSMISSION

TRANSMISSION ASSY., 4WD, 570LXT models, new, with integrated differential lock solenoid valve, parts list Fig. 6-32 - 6-58, Replaces: 130787A2 trans. which used the chassis mounted differential lock solenoid valve, see Fig. 6-90, Inc.: Ref. 1-5

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329082A1 transmission, see Figure 6-60

1шт.

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

2шт.

2

181151A1

BLOCK

SHIM bearing, 52 x 35.1 x 4 mm, if used

2шт.

3

181186A1

PINION

GEAR idler, 27 teeth, 580L models, no longer available, order 310613A1 one piece gear shaft, Ref. 13

1шт.

3

181225A1

GEAR

GEAR idler, 27 teeth, 570LXT models, no longer available, order 310614A1 one piece gear shaft, Ref. 13

1шт.

4

181181A1

SHAFT

SHAFT idler, no longer available, 580L models order 310613A1 one piece gear shaft or 570LXT models order 310614A1 one piece gear shaft, Ref. 13

1шт.

5

181186A1

PINION

GEAR idler, 27 teeth, no longer available, 580L models order 310613A1 one piece gear shaft or 570LXT models order 310614A1 one piece gear shaft, Ref. 13, Includes: Ref. 6-13

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

1шт.

7

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

8

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER thrust, 65 x 45 mm

1шт.

9

181188A1

PINION

GEAR drive, third, 28 teeth

1шт.

10

181187A1

GEAR

GEAR drive, fourth, 39 teeth

1шт.

11

181184A1

SHAFT

SHAFT primary

1шт.

12

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING roller

1шт.

13

310613A1

SHAFT

SHAFT gear, idler, one piece, Replaces: Ref. 2 thru 5 on 580L models, 181151A1 shim, Ref. 2, is not required with 310613A1 one piece gear shaft

1шт.

13

310614A1

SHAFT

SHAFT gear, idler, one piece, Replaces: Ref. 2 thru 5 on 580L models, 181151A1 shim, Ref. 2, is not required with 310614A1 one piece gear shaft

1шт.
