Запчасти Case 580L (6-040) - TRANSMISSION ASSEMBLY, TRANSMISSION SHIFTER MECHANISM, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

REF

INSTRUCTION

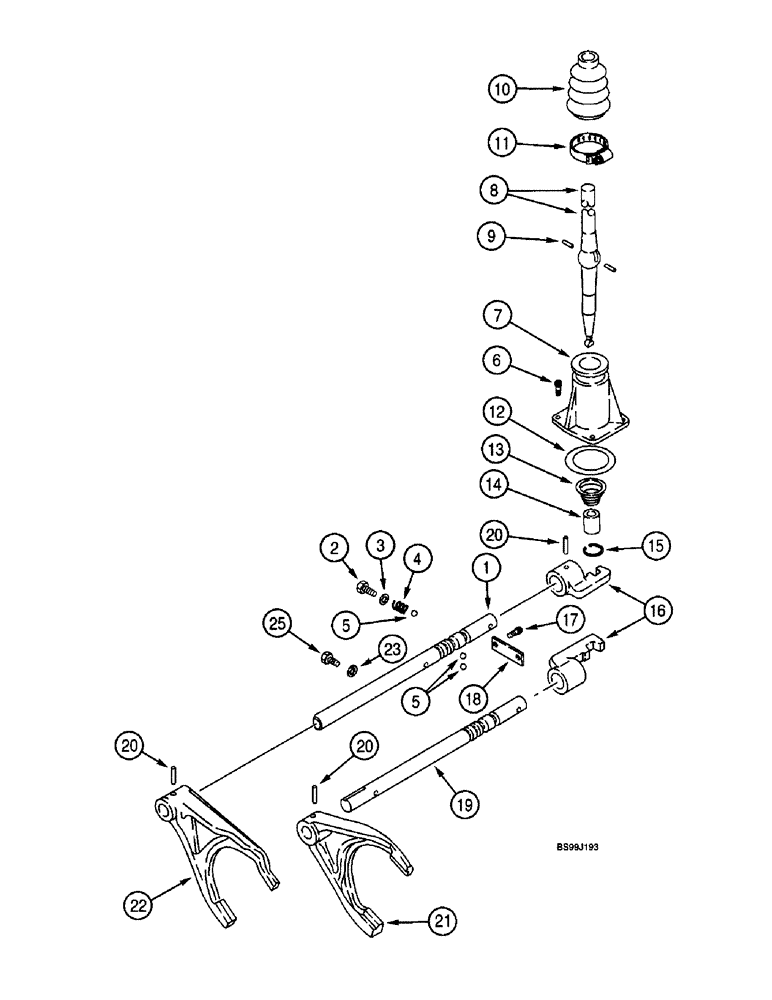

TRANSMISSION ASSEMBLY, 2WD or 4Wd, 580L or 570LXT, see Figure 6-32 for 130787A3, 123843A3, 130786A3 and 130787A3 trans. descriptions, parts list Figure 6-32 - 6-58, Includes: Ref. 1-25

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

1

181206A1

ROD

RAIL shifter fork, third and fourth, no longer included in transmission assy., Included in 256888A3 synchronizer kit

1шт.

Part of synchronizer service kit 256888A3

1шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 16 mm

3шт.

3

1966835C1

SEALING WASHER

flat, special, 12 x 16 x 1.5 mm

3шт.

4

1966993C1

SPRING

detent

2шт.

5

181139A1

BALL,10mm OD

detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

7

181171A1

COVER

shift lever

1шт.

8

190428A3

LEVER

Shift, Replaces 190428A1, 190428A2 lever, No longer included in transmission assy, Included in 256888A3 synchronizer kit

1шт.

Part of synchronizer service kit 256888A3

1шт.

9

1967585C1

PIN

shift lever, no longer included in transmission assy., included in 256888A3 synchronizer kit

2шт.

Part of synchronizer service kit 256888A3

1шт.

10

1967581C1

BOOT

rubber, no longer included in transmission assy., included in 256888A3 synchronizer kit

1шт.

Part of synchronizer service kit 256888A3

1шт.

11

181177A1

CLAMP

adjustable

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

sealing

1шт.

13

278533A1

SPRING

shift lever, Replaces: 1967586C1 spring, no longer included in transmission assy., included in 256888A3 kit

1шт.

Part of synchronizer service kit 256888A3

1шт.

14

278532A1

BUSHING

Shift lever, Replaces 181180A1 bushing, no longer included in trans assy., included in 256888A3 kit

1шт.

15

279039A1

RING, SNAP

Replaces:800-1115 ring, no longer included in transmisison assy., included in 256888A3 kit

1шт.

16

181173A1

SELECTOR

SHIFTER rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT hex socket, 10 - 1.5 x 25 mm

2шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

19

181245A2

SHIFT RAIL

RAIL, SHIFT, Fork, First and second; Included in 256888A3 synchronizer kit, See below

1шт.

Part of synchronizer service kit 256888A3

1шт.

20

905794R1

PIN,M6 x 30, Coiled

roll, 6 x 30 mm; included in 256888A3 synchronizer kit, see below

2-4шт.

Part of synchronizer service kit 256888A3

1шт.

21

181203A1

SHIFTER FORK

FORK gear shift, first and second

1шт.

22

181174A2

SHIFTER FORK

FORK gear shift, third and fourth, Replaces: 181174A1 fork, no longer included in transmission assy., included in 256888A3 kit

1шт.

Part of synchronizer service kit 256888A3

1шт.

23

181104A1

COPPER WASHER

WASHER sealing, copper

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref. 1, 8 - 10, 13 - 15, 19, 20, 22; plus parts on Figures 6-040, 6-046, 6-048. Also incl 190436A1 spring, Ref 37 on 6-054. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
