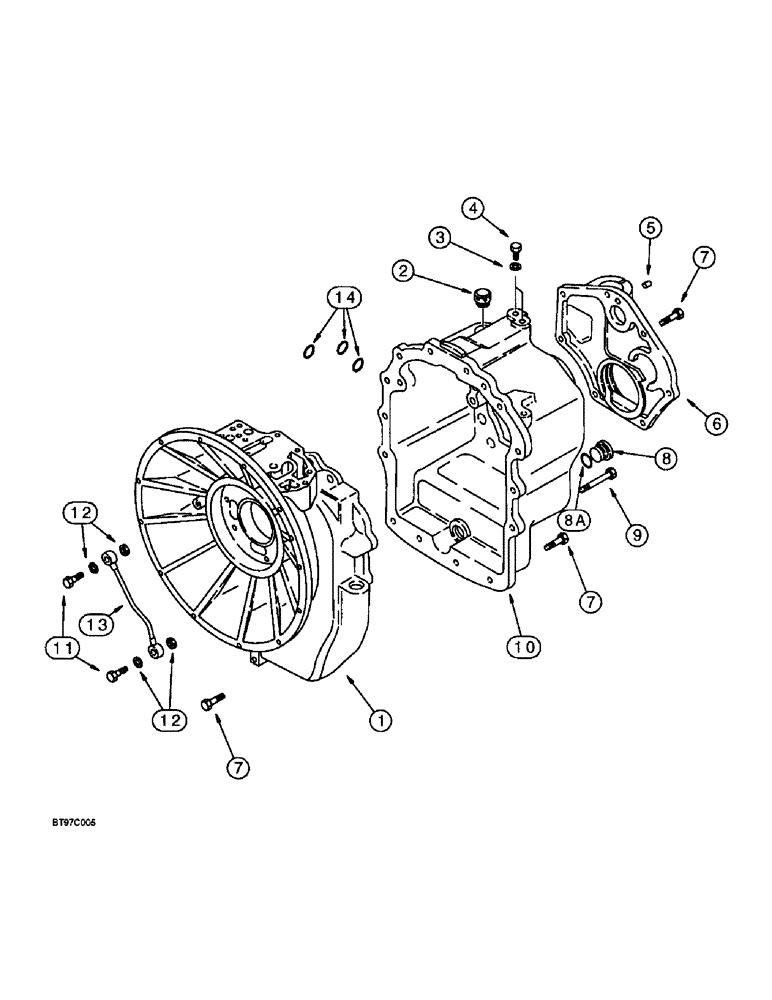

Запчасти Case 580L (6-026) - TRANSMISSION ASSEMBLY, TRANSMISSION HOUSING - TWO WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, see Figure 6-024, 6-026, 6-030 - 6-038 and 6-042, see Figure 6-024 for transmission part numbers, Includes: Ref. 1 -14

1шт.

130786A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, see Figure 6-024, 6-026, 6-030 - 6-038 and 6-042, see Figure 6-024 for transmission part numbers, Includes: Ref. 1 -14

1шт.

1

181267A1

HALF SAFETY COVER

HOUSING front half

1шт.

1

181267A1

HALF SAFETY COVER

HOUSING front half

1шт.

2

1530028C1

BREATHER

Housing

1шт.

3

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

2шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

4

181100A1

PLUG,1/8 CAS x 8

housing

2шт.

5

K260177

PIN

dowel, special, 10 x 25 mm

3шт.

6

181197A1

COVER

housing, rear half

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

23шт.

8

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, Includes: Ref. 8A

1шт.

8a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

9

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

hex, 10-1.5 x 150 mm

2шт.

10

181268A1

HALF SAFETY COVER

HOUSING rear half

1шт.

11

181179A1

BANJO BOLT

BOLT, BANJO, Hex, Special

2шт.

12

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

WASHER flat, copper, special, 14 x 20 x 1.5 mm

4шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

13

181232A1

TUBE

oil lubrication

1шт.

14

181141A1

O-RING,17.12mm ID x 2.62mm Width

housing

3шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

278302A1

SET OF PARTS

KIT seal, transmission overhaul, two wheel drive, Include: Ref. 3, 12 and 14, also see kit parts on Figure 6-024, 6-026, 6-032 - 6-038 and 6-042

1шт.
