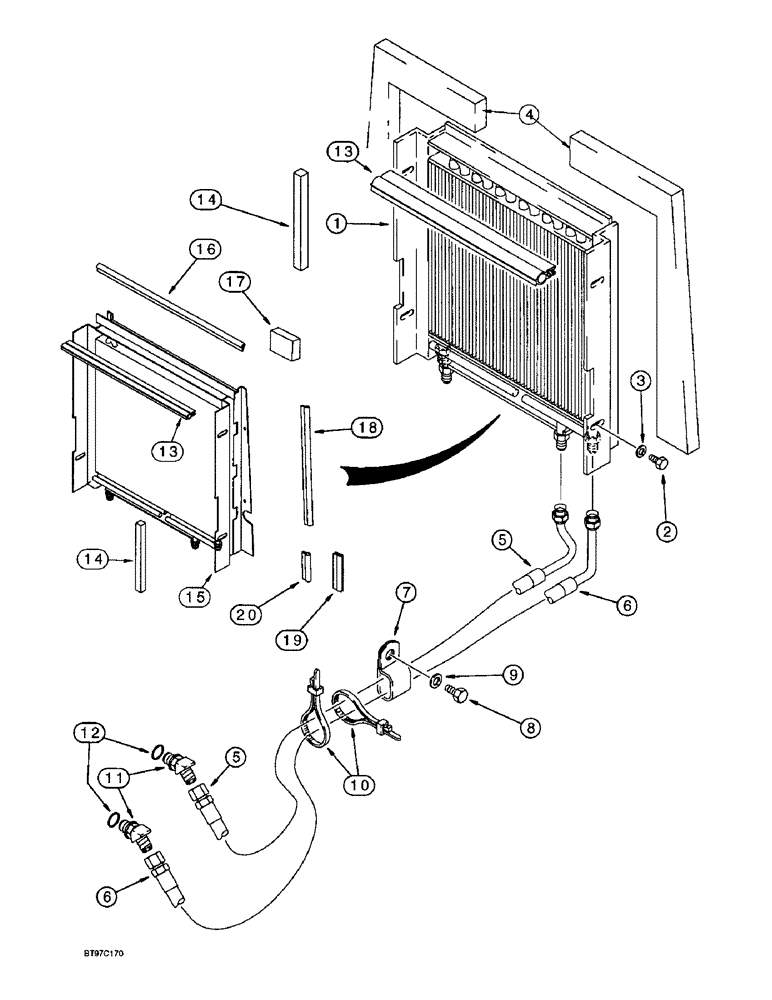

Запчасти Case 580L (6-020) - TRANSMISSION COOLING SYSTEM, USED WITH P/N 129264A1 OR 234876A1 RADIATOR ASSYEMBLY (06) - POWER TRAIN

1

231280A1

COOLER, OIL

COOLER hydraulic oil

1шт.

Used with P/N 129264A1 or 234876A1 radiator on Figure 2-002, uses radiator upper mounting bolts, see Figure 9-082 for hardware and Figure 8-008 for additional cooler hydraulic routing, Replaces: P/N 139783A1 cooler, if used, for service order P/N 277114A1 cooler

1шт.

1a

277114A1

COOLER, OIL

COOLER hydraulic oil, not used in production, for service of P/N 231280A1 cooler, if used, not shown

1шт.

Part number is stamped on top of oil coolers.

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

4

233409A1

FOAM INSULATION

BAFFLE foam, used with P/N 231280A1, Ref. 1 cooler

2шт.

237708A1

SEALANT

ANT RTV clear, 10.3 ounce tube

1шт.

5

188829A1

HOSE

1215 mm/47-7/8 inch long, transmission to cooler inlet

1шт.

6

188830A1

HOSE

1525 mm/60 inch long, cooler, Serial Range: outlet-transmission

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

P-type, double, 1 inch

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, 45°

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

183735A1

OIL SEAL

radiator to oil cooler

1шт.

14

233311A1

RUBBER STRIP,20mm W x 270mm L x 20mm Thk

adhesive back, 20 x 20 x 270 mm long, radiator to oil cooler

2шт.

15

233817A1

COOLER, OIL

COOLER hydraulic oil, with steel flanges, used with P/N 234876A1 radiator on Figure 2-02, uses radiator upper mounting bolts, see Figure 9-068 for hardware and Figure 8-008 for additional cooler hydraulic routing, if used

1шт.

Part number is stamped on top of oil coolers.

1шт.

16

233972A1

SEAL

564 mm/22-7/32 inch long, cooler to wrapper, if used

1шт.

17

234719A1

SEAL

SEAL, 70 x 100 x 32 mm, top corner block, used with P/N 345-44 adhesive, if used

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

18

258746A1

SEAL

390 mm/15-3/8 inch long, cooler side, if used

2шт.

19

258747A1

SEAL

132 mm/5-7/32 inch long, cooler slot, if used

2шт.

20

258748A1

SEAL

100 mm/3-15/16 inch long, cooler side, bottom, if used

2шт.
