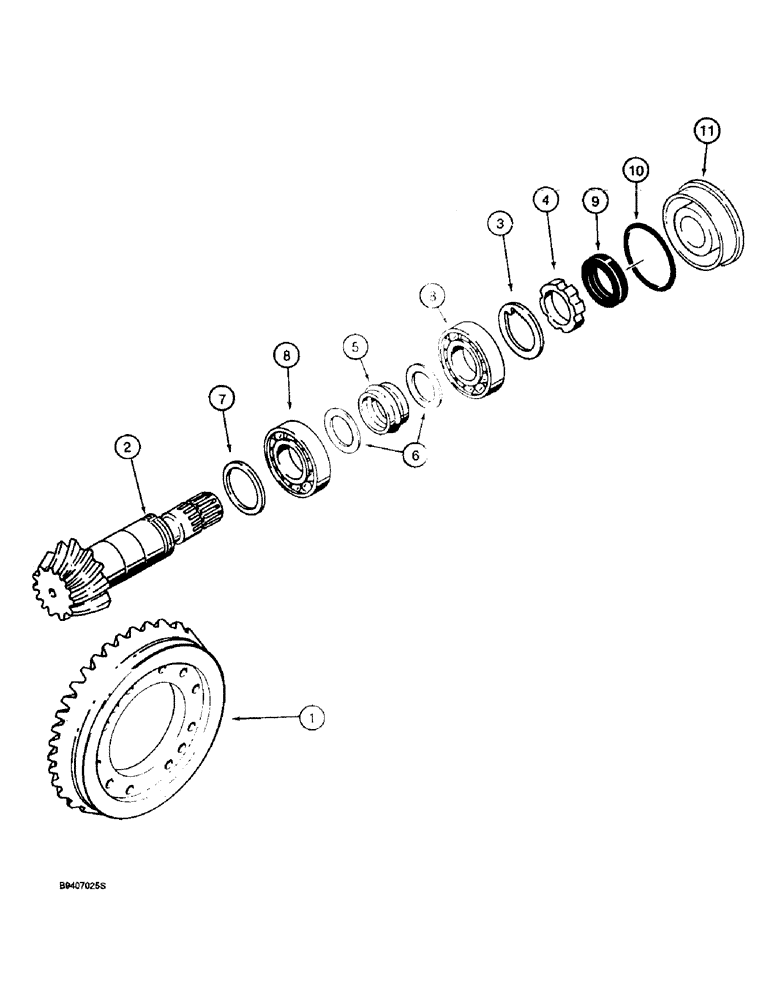

Запчасти Case 580L (6-016) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, see Figure 6-004 - 6-016, Includes: P/N 144460A1 and Ref. 1 - 11

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

144460A1

GEAR SET

Ring and pinion, Incl Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special

1шт.

4

K261014

RING NUT,M40 x 1.5

RING nut, pinion gear

1шт.

5

1349058C1

SPACER

collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098") 2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102") 2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106") 2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110") 2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114") 2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118") 3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122") 3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125") 3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129") 3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133") 3.40mm Thk

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

COVER differential

1шт.

B17575

FLUID

SEALANT black RTV silicone, 3 ounce/89 ml tube, differential cover to differential carrier, not shown

1шт.
