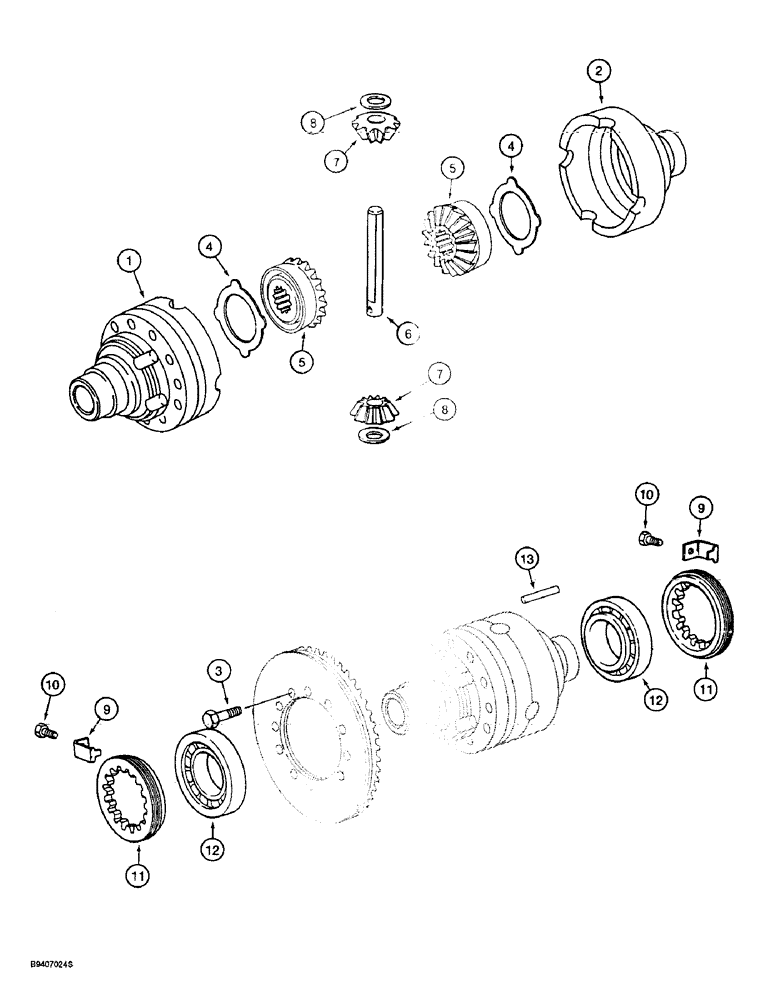

Запчасти Case 580L (6-014) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, see Figures 6-004 - 6-016, Includes: P/N 109686A1 and Ref. 1 - 13

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY, differential, Includes: Ref. 1 and 2; Prior to Axle S/N 16272

1шт.

294933A1

HOUSING

Assy, Differential, Incl. Ref 1, 2; Axle S/N 16272 & after

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967003C1

THRUST WASHER

WASHER thrust, differential housing

2шт.

5

231397A1

SERVICE KIT

KIT, SERVICE, Set - gear, Differential, Service replacement, Incl Ref. 5-8 and 13

1шт.

5

N14407

GEAR

side, differential, no longer available, for service order P/N 231397A1 set

2шт.

6

K395087

SHAFT

- Pinion gear, No longer available, For service order P/N 231397A1 set

1шт.

7

N14408

SUN GEAR

GEAR pinion, differential, no longer available, for service order P/N 231397A1 set

2шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear, No longer available, For service order P/N 231397A1 set

2шт.

9

1966153C1

LOCKING PLATE

BRACKET lock

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, self-locking, special, 6-1 x 12 mm

2шт.

11

1966559C1

NUT

RING, LOCKING

2шт.

12

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

13

K395086

PIN

dowel, no longer available, for service order P/N 231397A1 set

1шт.

B17575

FLUID

SEALANT black RTV silicone, 3 ounce/89 ml tube, bolt to differential housing, not shown

1шт.
