Запчасти Case 580L (6-012) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

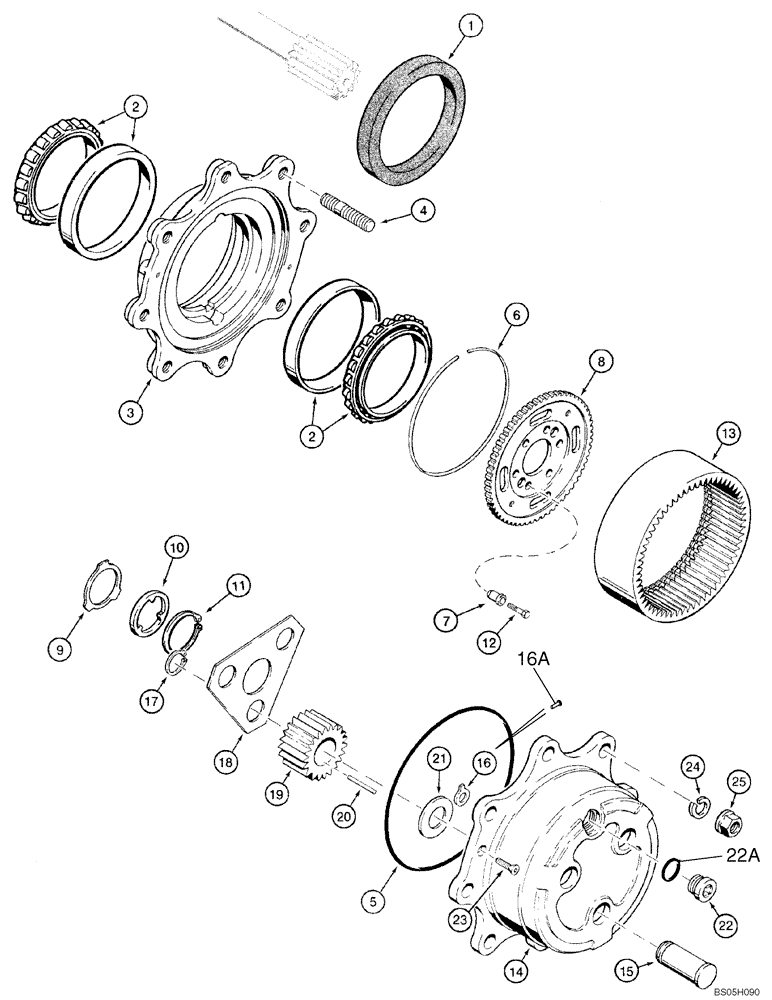

Схема запчастей Case 580L - (6-012) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN
20
19
11
10
8
17
12
9
2
21
4
25
7
1
5
2
16a
6
14
15
23
13
16
24
22
3
22a
18

Артикул

Название

Примечание

Количество

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, see Figure 6-004 - 6-016

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

130 ID x 160 OD x 14 wide; Replaces 1984938C1

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

BEARING tapered roller, hub

2шт.

3

144466A1

HUB

ASSEMBLY, front drive axle, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

HUB wheel attaching

1шт.

4

100556A1

STUD

hub, special, wheel studs that hold on the rim

8шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

wheel hub

2шт.

6

100559A1

SPECIAL RING

RING backup, wheel hub O-ring

2шт.

7

116426A1

BUSHING

carrier

12шт.

8

116427A1

GEAR

CARRIER ring gear

2шт.

9

190684A1

THRUST WASHER

WASHER, THRUST

2шт.

10

190682A1

THRUST WASHER

WASHER, THRUST

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

2шт.

12

116425A1

BOLT

BOLT hex, self-locking, special

12шт.

13

100561A1

GEAR

ring, planetary

2шт.

14

100554A1

PINION CARRIER

PLANETARY ASSEMBLY, front drive axle, Includes: P/N 100553A1 and Ref. 14 - 22

2шт.

14

100553A1

HOUSING ASSY.

CARRIER ASSEMBLY, planetary, Includes: Ref. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

CARRIER planetary

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT pinion gear

3шт.

16

1966579C1

WASHER

DISC axle shaft; If Used

2шт.

16a

K395093

HEADED PIN,12mm OD x 15mm L

Locking; If Used

2шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

6шт.

18

100555A1

LARGE PLATE

RETAINER pinion gear

2шт.

19

K395114

GEAR

Sun Gear - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

GEAR pinion, planetary

6шт.

20

114295A1

10 NEEDLE BRG KIT

BEARING needle, planetary gear, packet of 10

9шт.

21

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, Incl. 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate Hex Soc Flat Hd, M8 x 20, 10.9

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, hardened, 25/32 x 1-3/8 x 1/8 inch

16шт.

25

825-11418

NUT,M18 x 1.5, Cl 8

hex, 18 mm - 1.5

16шт.

B17575

FLUID

SEALANT black RTV silicone, 3 ounce/89 ml tube, planetary cover to hub, not shown

1шт.

Выбрано товаров: 35
