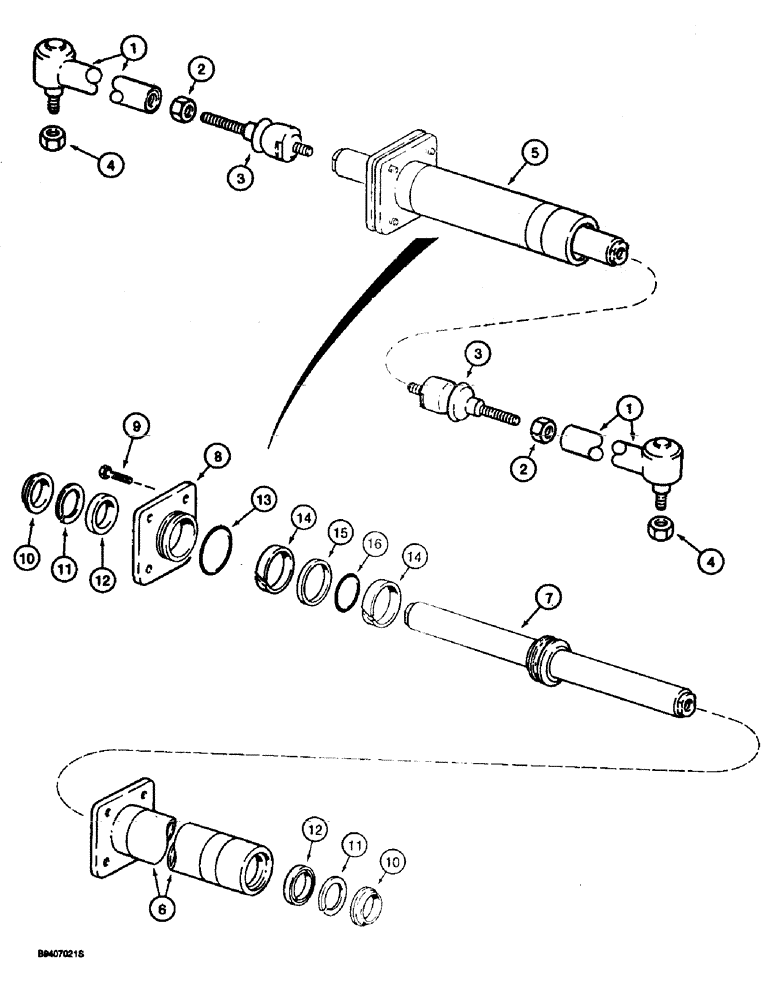

Запчасти Case 580L (6-008) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, Includes: Ref. 1 - 16, see Figure 6-004 - 6-016

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

144457A1

STEERING ARM

ARM, STEERING, Assy, Incl Ref. 1-3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

JOINT ball, swivel side

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

hex, special

1шт.

3

112509A1

BALL JOINT

JOINT ball, right-hand threads

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT hex, self-locking, 18 x 1.5 mm

2шт.

5

144458A1

CYLINDER

ASSEMBLY, steering, 4WD, order P/N D149739 kit to service seals, Includes: Ref. 6 - 16

1шт.

5

85805978R

REMAN-HYD CYLINDER

570LXT, 580L (NORTH AMERICA), Both LOADER LANDSCAPER, ASSEMBLY, steering, Reman For New PN 144458A1

1шт.

5

85805978C

CORE-HYD CYLINDER

Return Number

1шт.

6

D149738

STEERING CYLINDER

TUBE cylinder

1шт.

7

144459A1

ROD

piston

1шт.

8

D149737

GLAND

cylinder

1шт.

9

114296A1

BOLT

BOLT self-locking, special, steering cylinder, for service order P/N 100524A1 bolt and 892-11012 washer

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup

2шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL rod

2шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear

2шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING expander

1шт.

Part of Steering Cylinder Seal Kit, P/N D149739

1шт.

D149739

SEAL PACKAGE

KIT seal, steering cylinder, for rod, gland, and piston, Includes: Ref. 10 - 16

1шт.

B17575

FLUID

SEALANT black RTV silicone, 3 ounce/89 ml tube, cylinder flange to cylinder, not shown

1шт.
