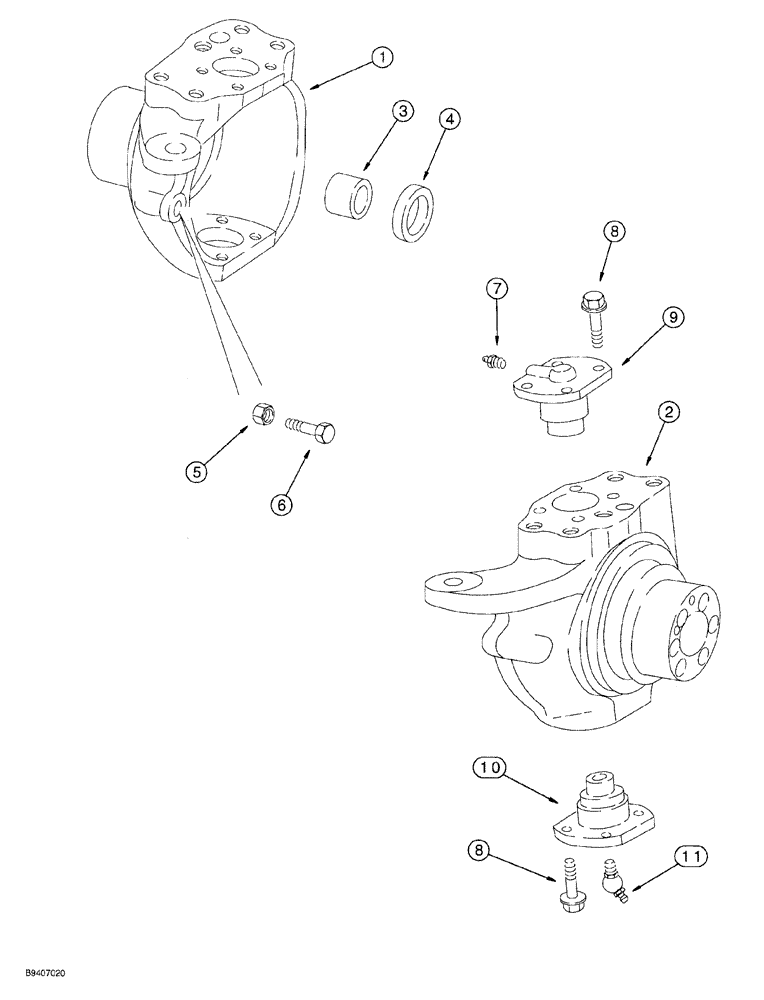

Запчасти Case 580L (6-006) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

113561A3

AXLE

ASSEMBLY, front drive, Carraro No. 131204, parts list Figures 6-4 - 6-16, Includes: Refs. 1-11; Replacse 113561A1, 113561A2

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A3

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

85805981

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat)

Swivel, LH; Used With 100529A1 45 x 65 x 12 Seal, Ref 4; No Longer Available, Replaces 144455A1; If Used

1шт.

1

87673991

HOUSING,4 Holes (King Pin Fixing), 8 Holes (Hub Side), 60mm ID (Seal Ring Seat)

Swivel, LH; Used With 85824345 45 x 60 x 16 Seal, Ref 4; Replaces 397653A1; If Used

1шт.

2

85805985

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat)

Swivel, RH; Used With 100529A1 45 x 65 x 12 Seal, Ref 4; Replaces 144456A1; If Used

1шт.

2

87673972

KNUCKLE,4 Holes (King Pin Fixing), 8 Holes (Hub Side), 60mm ID (Seal Ring Seat)

Swivel, RH; Used With 85824345 45 x 60 x 16 Seal, Ref 4; Replaces 397654A1; If Used

1шт.

3

85805988

BRONZE BUSHING,45.08mm ID x 50.12mm OD x 35mm L

Swivel Housing, Used With RH or LH Swivel Housing, Not Included With Housing, Order Separately; Replaces 100532A1

2шт.

4

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

oil, swivel housing; 45 x 65 x 12; Used With 144455A1, 144456A1, 85805981, 85805985 Housings, Ref 1, 2

2шт.

4

85824345

OIL SEAL,45mm ID x 60mm OD x 16mm Thk

Oil, Swivel Housing; 45 x 60 x 16; Used With 397653A1, 397654A1, 87673991, 87673972 Housings, Ref 1, 2; Replaces 402359A1

2шт.

5

87313789

NUT

Replaces 85805986

2шт.

6

85805987

SCREW,M16 x 100mm

16 mm, steering stop; Replaces 1537664C1

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

Swivel cap

2шт.

8

85805979

SCREW,Hex Flng, M12 x 1.75 x 30mm

hex, special, 12-1.75 x 30 mm; Replaces 100533A1

16шт.

9

85805980

PIN

king, swivel housing cap, upper; Replaces 122265A1

2шт.

10

85805983

PIN

king, swivel housing cap, lower; Replaces 122264A1

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

Special, swivel cap

2шт.

B17575

FLUID

SEALANT black RTV silicone, 89 ml (3 ounce) tube, wear ring to swivel housing, not shown

1шт.
