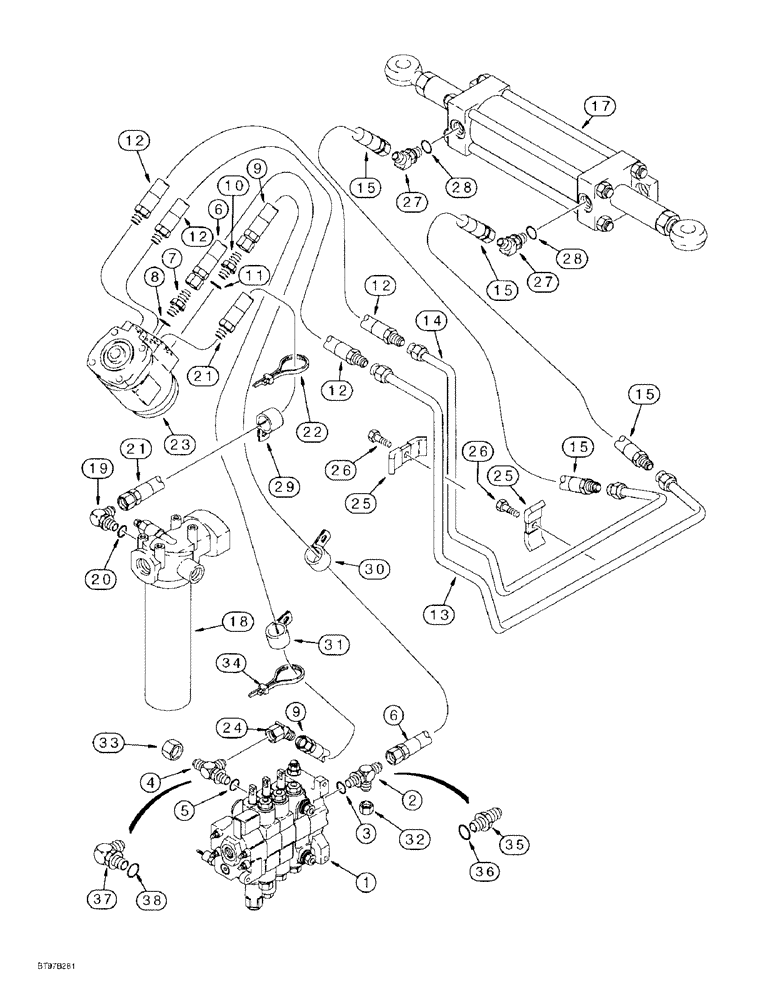

Запчасти Case 580L (5-004) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-060 or 8-062

1шт.

2

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch flare branch x flare x adjusting O-ring boss, if used, Includes: Ref. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adjusting O-ring boss, lower inlet port, for 45° elbow used with this tee on models with ride control, see Figure 8-056, Serial Range: -JJG0221934

1шт.

4

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

3/4-16 inch flare branch x 1-1/16-12 flare x 7/8-14 inch adjusting O-ring, lower inlet port, open end of tee connects to swing supply hose, see Figure 8-43B, Ref. 3, for 45° elbow used with this tee on models with ride control, see Figure 8-057B, Start Serial: JJG0221934

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, P/N 218-5241 or 218-5576 tee, part of P/N's 218*5576 and 218-5241

1шт.

6

144221A1

HOSE

1275 mm/50-3/16 inch long, steering pilot, steering control valve small center port to loader control valve

1шт.

7

120394A1

VALVE

steering check, Includes: Ref. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

144225A1

HOSE

1300 mm/51-3/16 inch long, steering pressure, loader control valve to steering control valve lower right-hand port, Serial Range: -JJG0221934

1шт.

9

224423A1

HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm

- Steering pressure, Loader control valve to steering control valve lower RH port 9.65 mm ID x 1300.00 mm, Start Serial: JJG0221934

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

132929A1

HOSE

730 mm/28-3/4 inch long, steering control valve upper and lower left-hand, Serial Range: ports-tubes

2шт.

13

120386A1

TUBE

lower, to steering cylinder right-hand port hose

1шт.

14

120388A1

TUBE

upper, to steering cylinder left-hand port hose

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

485 mm/19-3/32 inch long, to right-hand and left-hand port of steering cylinder

2шт.

17

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, 70/2-3/4 ID x 170 mm/6-45/64 inch stroke, steering, see Figure 5-012

1шт.

17

G107720R

REMAN-HYD CYLINDER

570LXT, 580L

1шт.

17

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

18

122536A1

HYDRAULIC OIL FILTER

FILTER ASSEMBLY, hydraulic oil, see Figure 8-120

1шт.

19

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4-16 flare x 9/16-18 inch adjusting O-ring boss, 90°, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

176328A1

HOSE

1730 mm/68-1/8 inch long, steering return, steering control valve upper right-hand port to hydraulic oil filter

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

5шт.

23

120421A1

PUMP, HYDRAULIC

VALVE ASSEMBLY, steering control, see Figure 5-010

1шт.

23

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 120421A1, Valve Assembly

1шт.

23

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

24

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

7/8-14 inch flare x swivel, 45°, Serial Range: -JJG0221934

1шт.

24

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

3/4-16 inch flare x swivel, 45°, if used, no longer required, Start Serial: JJG0221934

1шт.

25

D40236

CLAMP

tube

2шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

27

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, 45°, for fittings used on four-wheel drive, see Figure 6-002, Incl. Ref 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

30

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, If used 5/8", Insul, 3/8" Bolt

1шт.

32

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch, if used

1шт.

33

218-756

CAP,37 Degree, 7/8"-14

If used 37º, 7/8"-14

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, if used

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, may be used on models without auxiliary hydraulics, if used

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

3/4-16 flare x 7/8-14 inch adjusting O-ring boss, 90°, may be used on models without auxiliary hydraulics, if used

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
