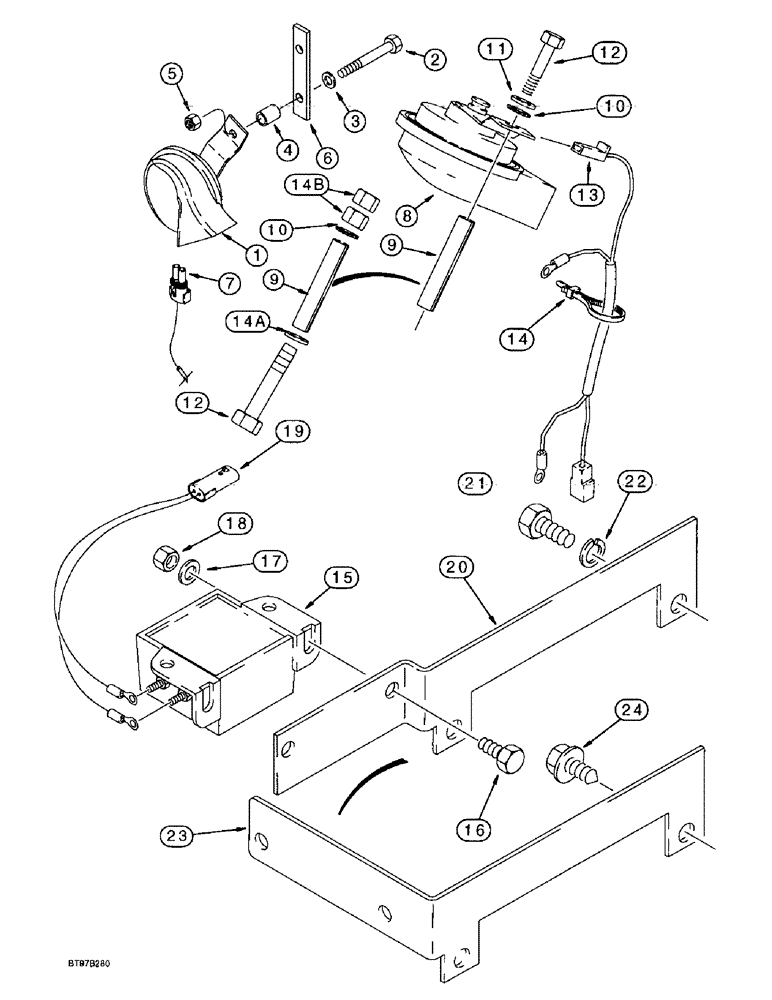

Запчасти Case 580L (4-044) - HORN AND BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

190155A1

BUZZER

HORN, 12 volt, includes mounting bracket, no longer available, order P/N 3057542R91

1шт.

2

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8), Horn

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, Horn

1шт.

4

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm/7/8 inch long, Horn

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, Horn

1шт.

6

190397A1

SUPPORT

BRACKET horn mounting

1шт.

7

REF

INSTRUCTION

HARNESS engine, main, see Figure 4-010 for engine harness options, Horn

1шт.

8

190155A1

BUZZER

HORN, 12 volt, includes mounting bracket, Horn

1шт.

9

116423A1

SPACER

split, Horn

1шт.

10

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, , Horn Ext Tooth, M8

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, Horn

1шт.

12

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

hex, 8-1.25 x 110 mm, Horn

1шт.

13

194258A1

HARNESS

horn jumper, attaches to main engine harness, see Figure 4-010 for engine harness options

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, Horn

4шт.

14a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, If used, Horn

1шт.

14b

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, If used, Horn

2шт.

15

109511A1

ALARM

backup, attaches to main engine harness, see Figure 4-010 for engine harness options

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8-1.25 x 20 mm, Replaces: P/N 614-8025 bolt used on some models, Backup alarm

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, Backup alarm

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Backup Alarm M8 x 1.25, Cl 8

2шт.

19

D139175

HARNESS

WIRE pigtail, attaches main engine harness to alarm backup

1шт.

20

191801A1

SUPPORT

BRACKET backup alarm mounting, 570LXT models only, if used

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used, Backup Alarm Hex, M10 x 25, 8.8, Full Thd

2шт.

22

892-11010

LOCK WASHER,M10

If used, Backup alarm M10

2шт.

23

227120A1

SUPPORT

BRACKET backup alarm mounting, 570LXT models only, if used

1шт.

24

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10-1.5 x 30 mm, if used, Backup alarm

2шт.
