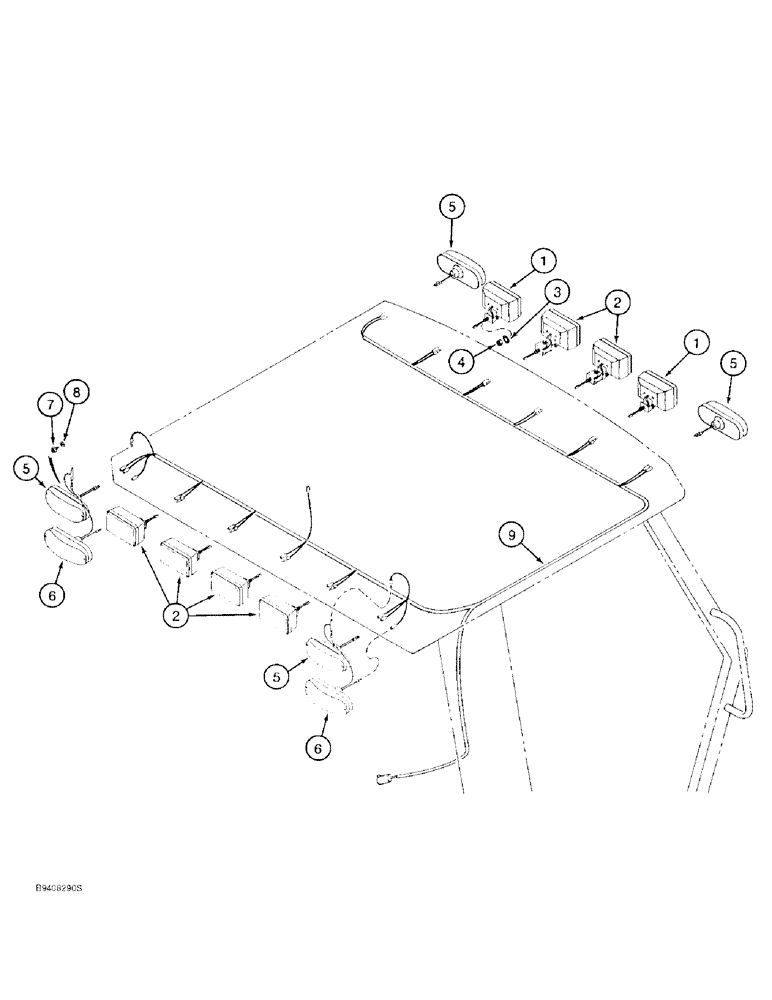

Запчасти Case 580L (4-028) - TRACTOR LAMP ELECTRICAL CIRCUIT, 580L OR 570LXT STANDARD ROPS CANOPY MODELS (04) - ELECTRICAL SYSTEMS

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY, front driving, outer, see Figure 4-034, no longer available, order P/N ZAA7376350

2шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY, flood and work, rear flood, outer and center front and rear work lamps, parts list Figure 4-34, no longer available, order P/N ZAA7376150 lamp package and ZAA8066600 mounting kit

6шт.

3

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER internal-external tooth lock, 1/2 inch

8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

8шт.

5

D135384

LAMP,12V

ASSEMBLY, turn signal and flasher, amber, front and rear, see Figure 4-038

4шт.

6

D121152

LAMP,12V

ASSEMBLY, stop and tail, red, rear, see Figure 4-038

2шт.

7

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch

12шт.

8

495-31022

WASHER,#10

12шт.

9

123811A1

HARNESS

ROPS canopy, lamps, attaches to side console instrument harness, see Figure 9-160 or 9-162 for harness cover and clamps that mount to the right-hand ROPS post

1шт.

See Figure 4-30 for harness used on 570LXT short ROPS canopy with minimal roof.

1шт.
