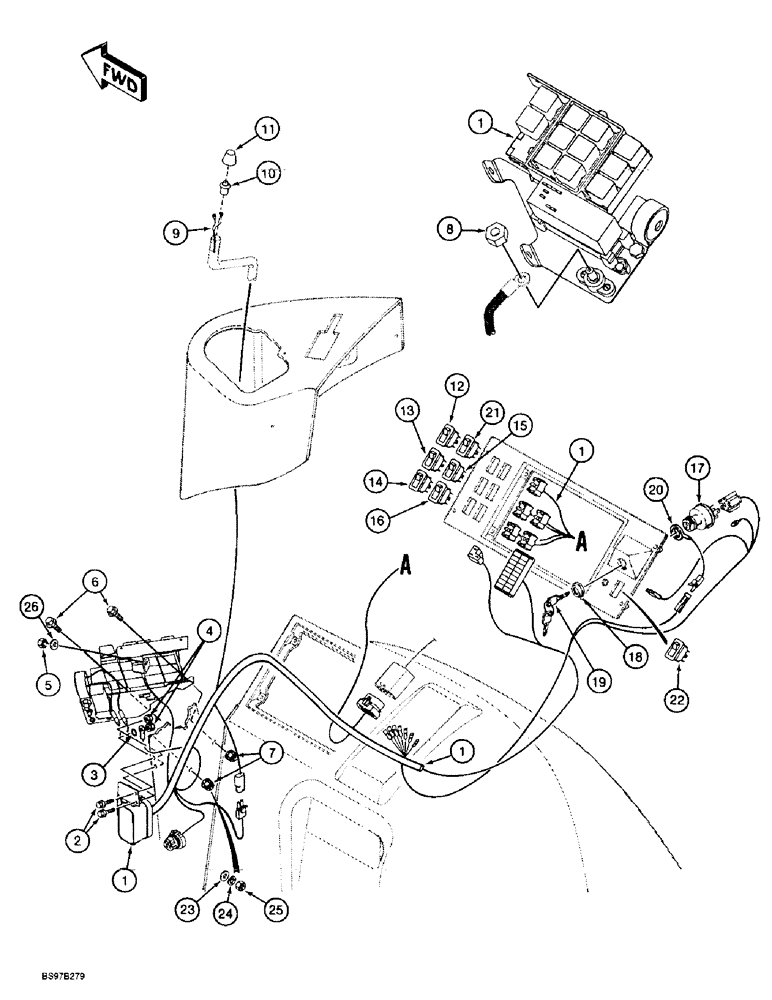

Запчасти Case 580L (4-020) - SIDE CONSOLE INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS side instrument console, see Figure 4-018 for side console harness options

1шт.

2

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

heavy hex flange, 6-1.0 x 25 mm

2шт.

3

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

4

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Attaches Fuse and Relay Mounting Bracket to Parking Brake Lever Mount, Replaces: P/N 829-1408 Hex Nut on Some Models M8 x 1.25, Cl 8

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, No longer used, order Ref 23 - 25

2шт.

8

425-106

NUT,3/8"-16, Cl 5

Attaches power wire from starter, Ref. 23 on Figure 4-010, to power junction block 3/8"-16, G5

1шт.

Cable beneath this nut is P/N 184188A1

1шт.

9

127518A1

HARNESS

clutch cutout, loader control lever, see Figure 9-004 for clamp and hardware used on models with clam control

1шт.

10

122398A1

IGNITION SWITCH

SWITCH push button, loader lever clutch cutout, see Figure 9-002 - 9-004 for loader lever

1шт.

11

D138252

BOOT

switch, round, loader lever clutch cutout switch

1шт.

12

133711A1

LIGHT SWITCH

rocker, driving lamps

1шт.

13

133713A1

LIGHT SWITCH

rocker, front work lamps

1шт.

14

133716A1

ROCKER SWITCH

rocker, four-wheel drive, if used, see Figure 4-024 for plug used in place of switch

1шт.

15

133715A1

LIGHT SWITCH

SWITCH, LIGHTS, Rocker, Rear flood lamps

1шт.

16

133714A1

BEACON SWITCH

rocker, rotating beacon, if used, see Figure 4-024 for plug used in place of switch

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY, ignition, includes keys

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

18

A77314

NUT

hex, special, key switch mounting

1шт.

19

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

20

D137820

HARNESS

WIRE, ignition, Serial Range: switch-ground

1шт.

21

143207A1

SWITCH

rocker, creeper drive, if used, see Figure 4-024 for plug used in place of switch

1шт.

22

142197A1

SWITCH

rocker, PTO, if used, see Figure 4-024 for plug used in place of switch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.
