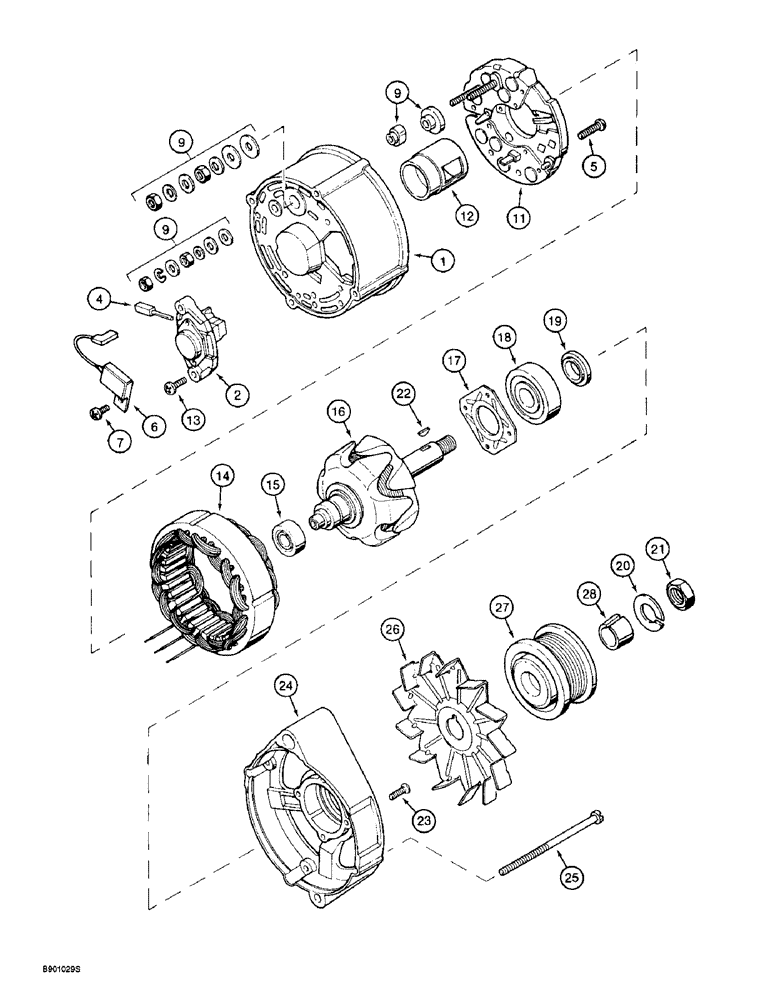

Запчасти Case 580L (4-006) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY engine, 65 ampere, electrical, Includes: Ref. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 61 ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT and washer, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW - special, Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187917

RECTIFIER

RECTIFIER alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

BOLT hex flange, special, voltage regulator retaining

2шт.

14

1964966C1

STATOR

STATOR alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball, rotor, collector ring end

1шт.

16

1964964C1

ROTOR

ROTOR alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in P/N A187873 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A186182

HOUSING

HOUSING drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLTslotted, special, cover retaining

4шт.

26

221425R1

FAN

FAN alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY drive, not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER pulley, not included with alternator assembly, order separately

1шт.
