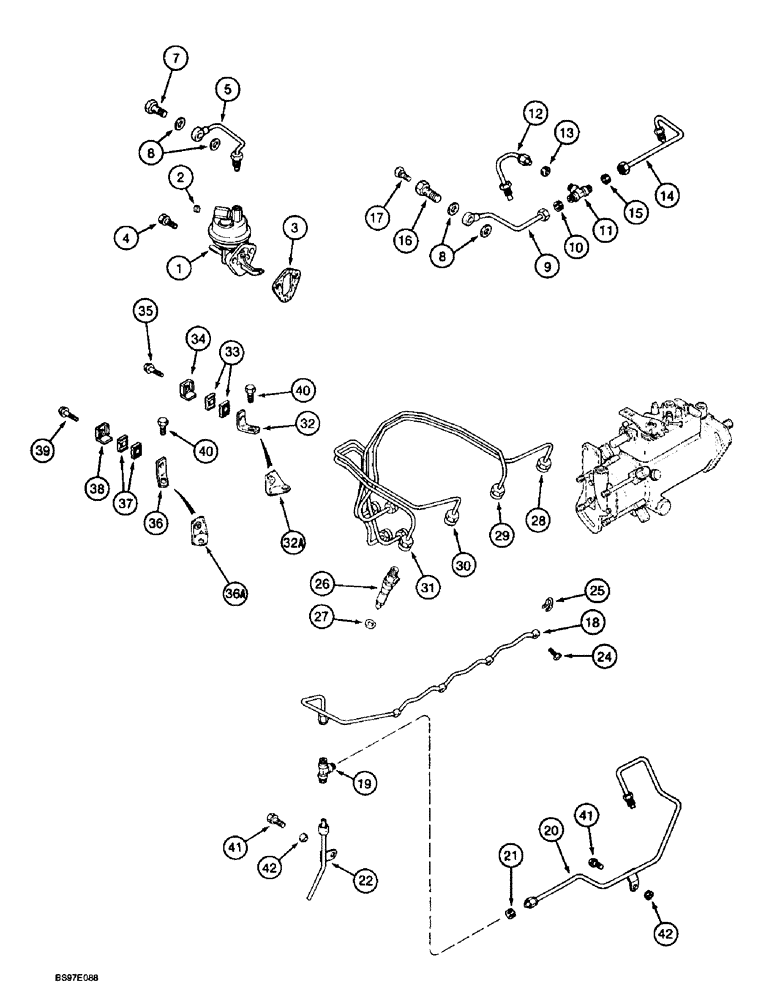

Запчасти Case 580L (3-008) - FUEL INJECTION SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J928143

PUMP

lift, fuel, Replaces: P/N J904374 pump

1шт.

2

221-841

PLUG

hex socket, 1/4 inch PT, fuel inlet

1шт.

3

J931348

GASKET

mounting, fuel transfer pump, Replaces: P/N J914304 and J923054 gasket

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY, fuel supply, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

7

J903035

BANJO BOLT

BOLT banjo hex, 12-1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

4шт.

9

J905364

FUEL TUBE

TUBE ASSEMBLY, fuel supply, filter to tee, Includes: Ref. 10

1шт.

10

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

11

J905353

TEE

9/16 inch NF, remove and discard nuts before assembly

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY, fuel supply, tee to rear of injection pump, Includes: Ref. 13

1шт.

13

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE fuel supply, tee to front of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY, banjo hex, special, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

18

J909695

FUEL TUBE

TUBE manifold, fuel drain

1шт.

19

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard nuts before assembly)

1шт.

20

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

TUBE ASSEMBLY, fuel return, tee to pump, Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

22

J905692

FUEL TUBE

TUBE fuel return, tee to fuel tank

1шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

25

J903380

SEAL

connector

4шт.

26

REF

INSTRUCTION

INJECTOR ASSEMBLY, fuel, see Figure 3-014

4шт.

27

J906659

SEAL

injector nozzle, 7 mm injector tip

1шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE fuel injector, No. 1 cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE fuel injector, No. 2 cylinder

1шт.

30

J903524

FUEL TUBE

TUBE fuel injector, No. 3 cylinder

1шт.

31

J903525

FUEL TUBE

TUBE fuel injector, No. 4 cylinder

1шт.

32

J919294

SUPPORT

BRACKET fuel tube, no longer used, order P/N J930689

1шт.

32a

J930689

SUPPORT

BRACKET fuel tube, Replaces: P/N J919294 bracket

1шт.

33

J917746

CLAMP

fuel tube

2шт.

34

CURJ904711

CLAMP

BRACKET fuel tube

1шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

36

J919292

SUPPORT

BRACKET fuel tube, no longer used, order P/N J930688

1шт.

36a

J930688

SUPPORT

BRACKET fuel tube, Replaces: P/N J919292 bracket

1шт.

37

J917746

CLAMP

fuel tube

2шт.

38

CURJ904711

CLAMP

BRACKET fuel tube

1шт.

39

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

40

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

41

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

42

J928759

SEALING WASHER

cover bolt, Replaces: P/N J900267 seal

2шт.
