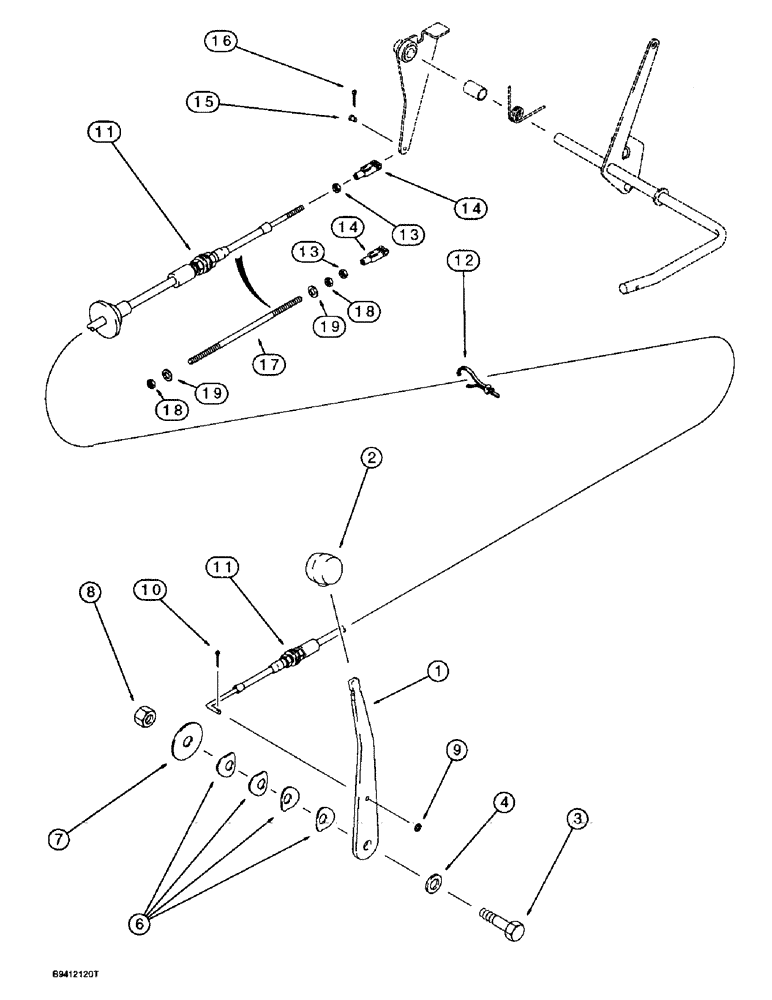

Запчасти Case 580L (3-004) - THROTTLE CONTROL LINKAGE, HAND CONTROL, USED ON 570LXT MODELS WITH PTO AND ALL 580L MODELS (03) - FUEL SYSTEM

1

121332A1

LEVER

hand throttle

1шт.

2

A177435

BALL KNOB

KNOB lever

1шт.

3

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

Belleville

4шт.

7

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

flat, hardened, 33/64 x 2 x 1/8 inch

1шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

1шт.

9

495-31022

WASHER,#10

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

11

121335A1

CABLE

control, hand throttle

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

13

225-14210

NUT,#10-32

1шт.

14

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

CLEVIS, ADJUSTABLE, #10-32 x 1 9/16"

1шт.

15

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

16

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

17

193376A1

THREADED ROD

ROD threaded, 570LXT models

1шт.

18

225-14210

NUT,#10-32

3шт.

19

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

flat, 13/64 x 3/4 x 1/16 inch

2шт.
