Запчасти Case 580L (3-002) - FUEL RESERVOIR, FUEL LEVEL SENSOR, AND LEFT-HAND MUD GUARD (03) - FUEL SYSTEM

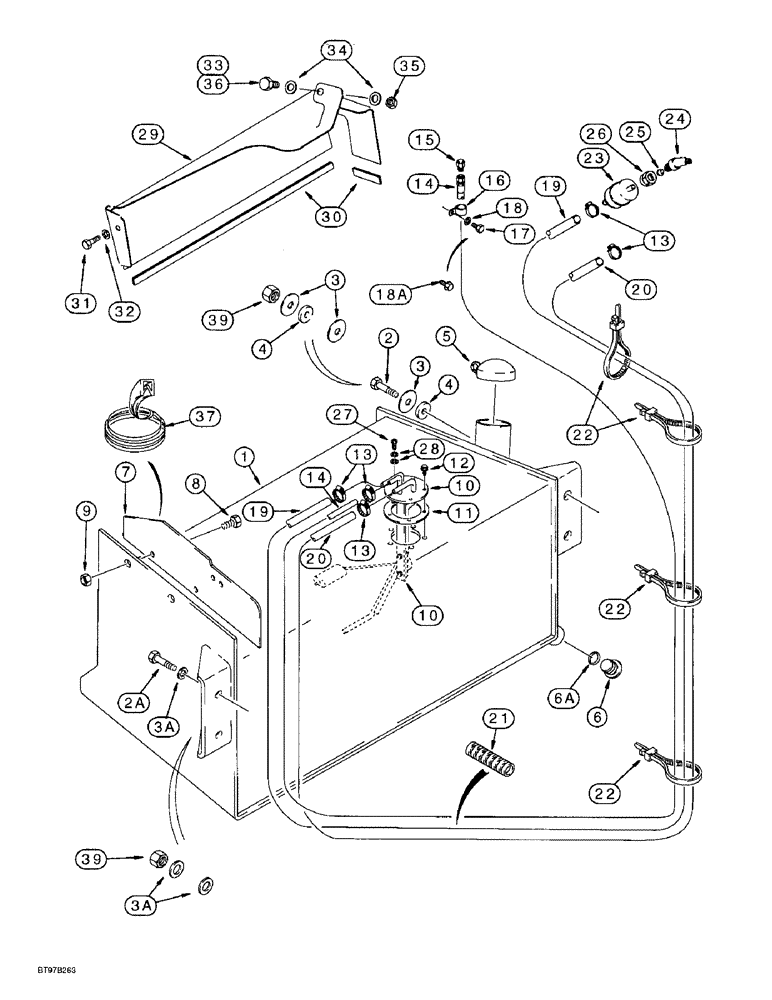

Схема запчастей Case 580L - (3-002) - FUEL RESERVOIR, FUEL LEVEL SENSOR, AND LEFT-HAND MUD GUARD (03) - FUEL SYSTEM
35
17
19
2
13
10
12
30
13
20
33
15
24
39
22
7
28
20
21
3
14
3a
14
6
18a
18
37
32
25
3
4
9
13
29
16
10
36
6a
5
11
19
1
26
2a
22
22
8
39
34
27
23
31
4
3a

Артикул

Название

Примечание

Количество

1

133504A1

FUEL TANK

TANK fuel reservoir, includes left-hand steps, mounts to left-hand side of chassis

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20-2.5 x 40 mm, class 10.9, if used

2шт.

See Figure 9-078 for studs used on some chassis.

1шт.

2a

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20-2.5 x 30 mm, class 10.9, if used

2шт.

See Figure 9-078 for studs used on some chassis.

1шт.

3

185646A1

WASHER

flat, hardened, special, 21 x 60 x 4 mm thick

2-4шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

2-4шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

bushing, left-hand side of tank

2шт.

5

130049A1

FILLER CAP

CAP fuel tank, non-vented

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 6A Hex Soc, 7/8"-14 ORB

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

141405A1

GUARD

mud

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Replaces: P/N 614-10025, 25 mm long bolt used on some models Hex, M10 x 20, 8.8, Full Thd

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

186881A1

FUEL GAUGE

SENSOR fuel level

1шт.

11

188311A2

GASKET,2.38mm Thk

fuel sensor, Replaces: P/N 188311A1 gasket

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

self-tapping, hex washer head, special, No. 10 NF x 5/8 inch

4шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

14

130046A1

HOSE

1500 mm/59 inch long, vent

1шт.

15

130047A1

BREATHER ASSY.

VENT fuel, 1/4 inch PTF short

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

No Longer Used, Order P/N 121856A1 bolt Hex, M10 x 25, 8.8, Full Thd

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, Used with P/N 614-10025

1шт.

18a

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10-1.5 x 30 mm

1шт.

19

114316A1

FUEL HOSE,10.00 mm ID x 1585.00 mm, SAE 30R6

Fuel supply 10.00 mm ID x 1585.00 mm, SAE 30R6

1шт.

20

114317A1

FUEL HOSE,6.00 mm ID x 1585.00 mm, SAE 30R6

Cut from 427683C2 bulk hose, Fuel return, Attaches to injector return line on engine 6.00 mm ID x 1585.00 mm, SAE 30R6

1шт.

21

130048A1

PROTECTOR

SLEEVE, 203 mm/8 inch long, fuel line hose guard

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

23

D145357

FILTER

fuel, in-line

1шт.

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

compression, 3/8 tube OD x 1/4 inch PT, to engine fuel pump, 45°, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

25

222-104

SLEEVE,3/8" Tube

3/8 inch tube OD

1шт.

26

222-114

NUT,5/8"-24

NUT hex, 3/8 tube OD x 5/8-24 inch

1шт.

27

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, fuel sensor ground

1шт.

28

D83885

WASHER

flat, copper, special

2шт.

29

189602A1

COVER

left-hand loader lift frame tubing, mounted above fuel reservoir, models without clam bucket

1шт.

29a

188009A1

COVER

left-hand loader lift frame tubing, mounted above fuel reservoir, models with clam bucket, not shown

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6/1/4 x 13//2 x 15240 mm/600 inch long, sold by the foot

1шт.

A165860

TRIM

edge, bulk, 696 mm/27-38 inch long

1шт.

30

191046A1

ORNAMENTAL STRIP

TRIM edge, 650 mm/25-19/32 inch long, cut from P/N A165860 bulk trim

1шт.

Apply 75 mm, 3 inch of trim to front lower edge and 570 mm/22-7/16 inch of trim to outside lower edge of cover.

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8-1.25 x 16 mm

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

P/N 189602A1 cover, no longer used, order P/N 814-10040 bolt Hex, M10 x 20, 8.8, Full Thd

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1-2шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

P/N 189602A1 Cover M10, Cl 10

1шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, P/N 188009A1 Cover, No longer used, Order P/N 814-10040 bolt

1шт.

37

D40442

MOLDING

TRIM edge, 305 mm/12 inch long, cut from P/N F42827 bulk trim

1шт.

38

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex, 10-1.5 x 40 mm, not shown

1шт.

39

829-1420

NUT,M20, Cl 10

Used on models with studs on chassis, See Figure 9-079, if used M20, Cl 10

4шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm/116 inch long

1шт.

Выбрано товаров: 51
