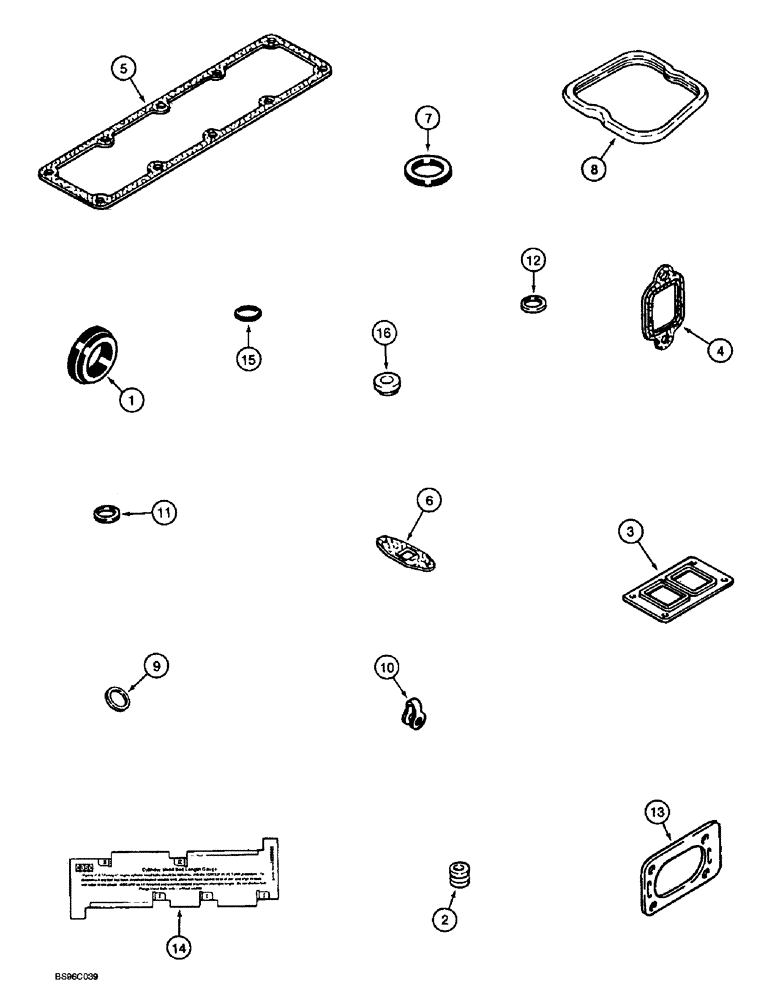

Запчасти Case 580L (2-054) - GASKET KIT, 4-390 ENGINE, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

A77858

GASKET KIT

KIT gasket, valve grind, Replaces: P/N A77792 valve grind gasket kit, Includes: Ref. 1 - 16

1шт.

When just the valve grind gasket kit is used, order the required cylinder head gasket, Ref. 6, Figure 2-032.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J901097

SEAL

valve stem

8шт.

3

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

5

J931605

BOLT

intake manifold

1шт.

6

J931350

GASKET

turbo oil drain tube

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

8

J930906

GASKET

SEAL rocker arm cover

4шт.

9

J900808

SEAL

injector nozzle, 9 mm tip, not used in this application

4шт.

10

J903380

SEAL

connector

4шт.

11

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, Serial Range: body-nut

4шт.

13

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

14

J823921

GAUGE

cylinder head, bolt length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

16

J928406

ISOLATOR

noise

4шт.
