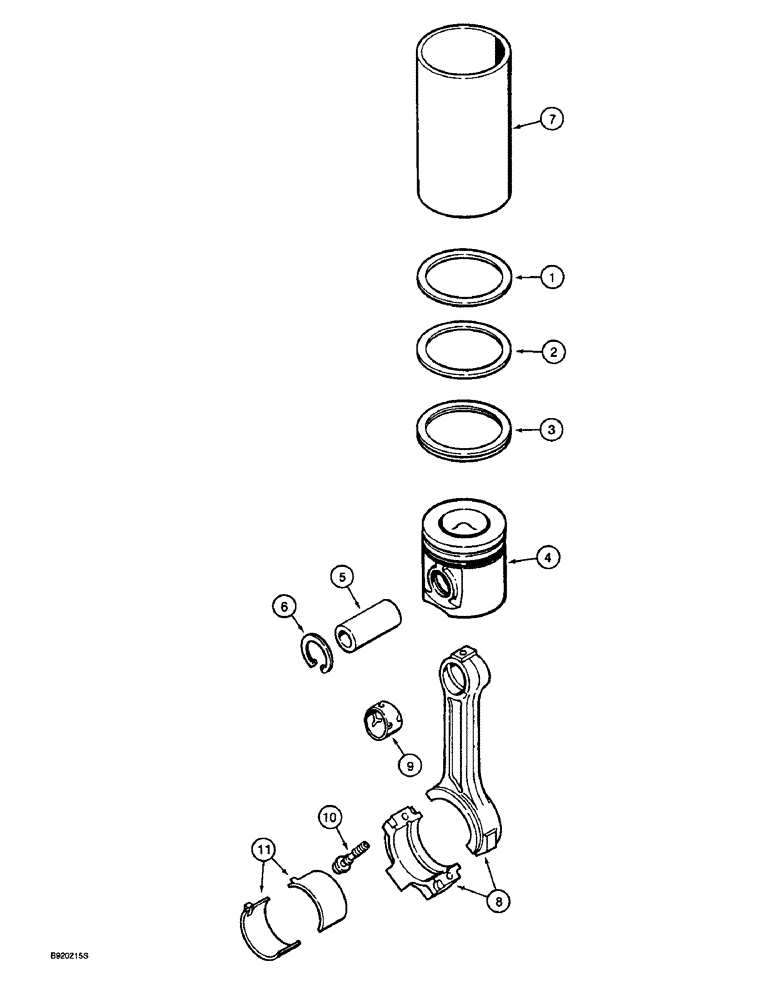

Запчасти Case 580L (2-052) - PISTONS AND CONNECTING RODS, 4-390 ENGINE (02) - ENGINE

A77818

PACKAGE

KIT piston, standard, Includes: Ref. 1 - 6

4шт.

A77401

PISTON RING SET

KIT ring, standard, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, Stamped 6223

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

A77819

PACKAGE

KIT piston, 0.5 mm oversize, Includes: Ref. 1 - 6

4шт.

A77463

PISTON RING SET

KIT ring, 0.5 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, Stamped 6209

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

A77820

PACKAGE

KIT piston, 1.0 mm oversize, Includes: Ref. 1 - 6

4шт.

A77464

PISTON RING SET

KIT ring, 1.0 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, Stamped 6208

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair when liner is installed use P/N A77818 piston kit)

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY, connecting, new

4шт.

JR925232

ROD

Assembly, connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

4шт.

JC925232

CORE-ROD CONNECTING

Return Number

4шт.

84145405R

REMAN-CONNECTING ROD

570LXT, 580L, Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, consists of: both halves, Includes: Ref. 9 and 10

1шт.

9

J901085

BUSHING

- connecting rod, to piston pin

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT bearing, upper and lower set, standard, connecting rods

4шт.

11

A77466

BEARING SET

KIT bearing, upper and lower set, 0.25 mm oversize, connecting rods

4шт.

11

A77467

BEARING LINER

KIT bearing, upper and lower set, 0.50 mm oversize, connecting rods

4шт.

11

A77468

BEARING SET

KIT bearing, upper and lower set, 0.75 mm oversize, connecting rods

4шт.

11

A77469

BEARING SET

KIT bearing, upper and lower set, 1.00 mm oversize, connecting rods

4шт.
