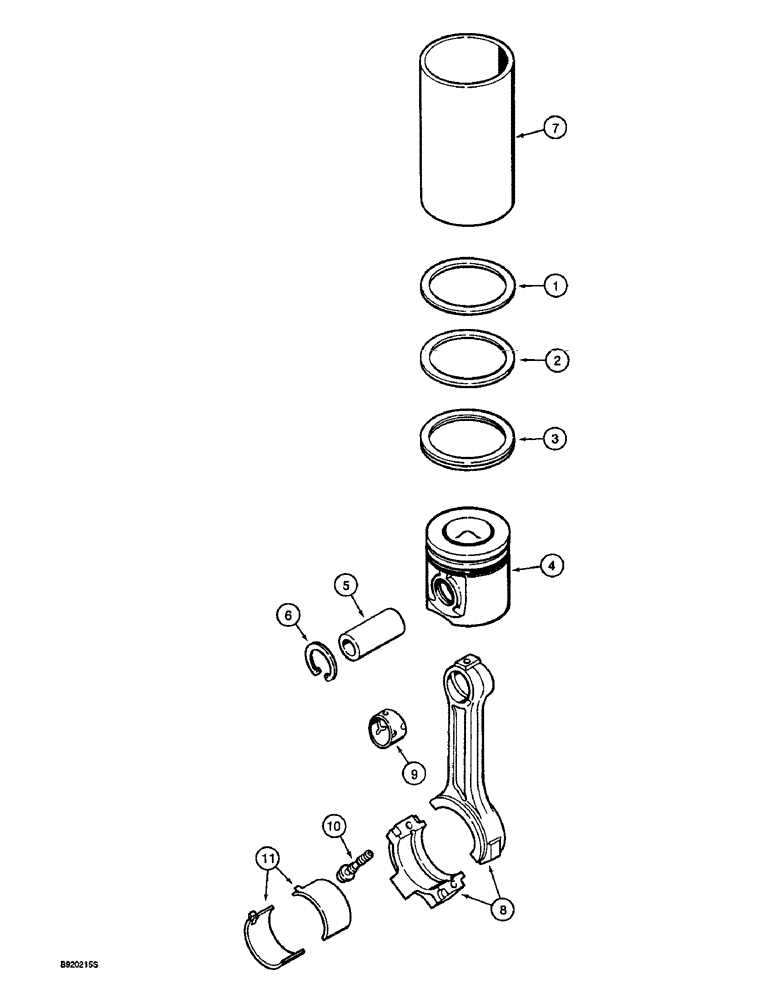

Запчасти Case 580L (2-050) - PISTONS AND CONNECTING RODS, 4T-390 ENGINE (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT piston, standard, Includes: Ref. 1 - 6

4шт.

A77727

PISTON RING SET

KIT ring, standard, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, Stamped 7163

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

A77731

PISTON & RINGS KIT

KIT piston, 0.5 mm oversize Includes: Ref. 1 - 6

4шт.

A77728

PISTON RING SET

KIT ring, 0.5 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, Stamped 8815

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

A77732

PISTON

KIT piston, 1.0 mm oversize, Includes: Ref. 1 - 6

1шт.

A77729

PISTON RING SET

KIT ring, 1.0 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, Stamped 8816

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap, piston

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed use P/N A77730 standard piston kit

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY, connecting, new, consists of: both halves, Includes: Ref. 8 - 10

4шт.

JR925232

ROD

Assembly, connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

4шт.

JC925232

CORE-ROD CONNECTING

Return Number

4шт.

84145405R

REMAN-CONNECTING ROD

570LXT, 580L, Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT bearing, upper and lower set, standard, connecting rods

4шт.

11

A77466

BEARING SET

KIT bearing, upper and lower set, 0.25 mm oversize, connecting rods

4шт.

11

A77467

BEARING LINER

KIT bearing, upper and lower set, 0.50 mm oversize, connecting rods

4шт.

11

A77468

BEARING SET

KIT bearing, upper and lower set, 0.75 mm oversize, connecting rods

4шт.

11

A77469

BEARING SET

KIT bearing, upper and lower set, 1.00 mm oversize, connecting rods

4шт.
