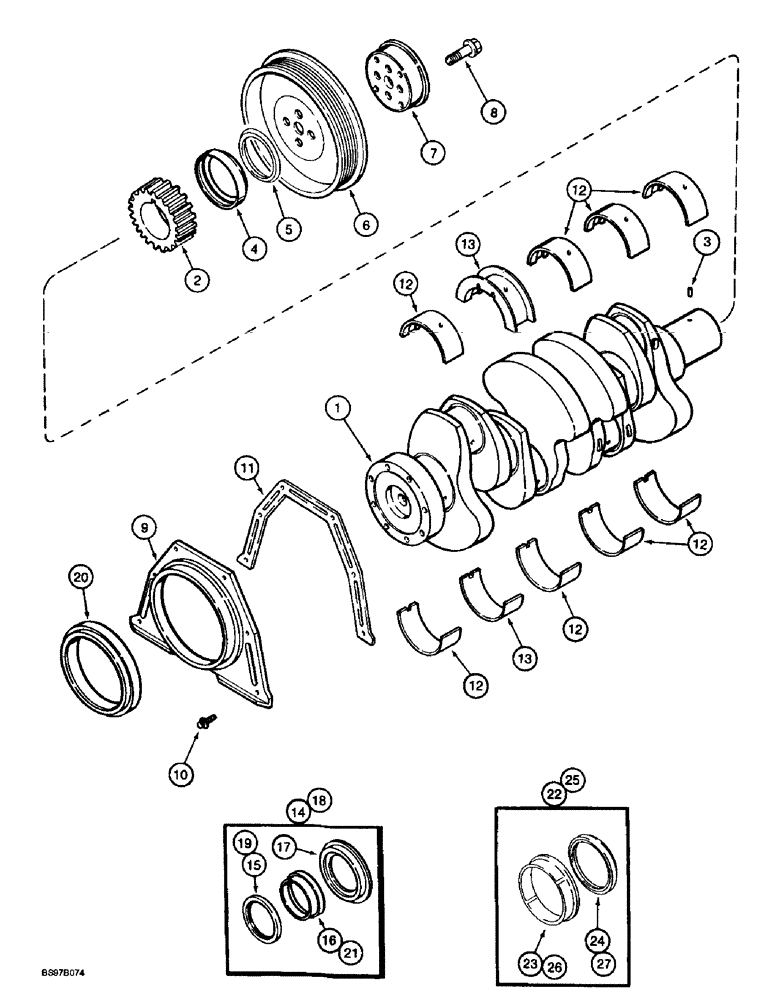

Запчасти Case 580L (2-046) - CRANKSHAFT, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

JR908031

CRANKCASE

CRANKSHAFT engine, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, for service order P/N J918323 crankshaft assembly

1шт.

J929036R

REMAN-CRANKSHAFT

570LXT, 580L, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

NUMBER return, use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY, engine, new, Includes: Ref. 2

1шт.

J929036R

REMAN-CRANKSHAFT

570LXT, 580L, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft, Replaces: P/N J919681 gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order P/N J90435314 kit

1шт.

5

J926430

SHAFT SEAL

SEAL dust, crankshaft, service repair only

1шт.

6

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

7

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12-1.25 x 36 mm

4шт.

9

J921043

REAR COVER

RETAINER seal, rear cover

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

J928493

GASKET

rear cover retainer, Replaces: P/N J914386 gasket

1шт.

12

A77405

CRANKSHAFT BEARING

BEARING main, upper and lower set, standard

4шт.

12

A77472

BEARING SET

BEARING main, upper and lower set, 0.25 mm undersize

4шт.

12

A77474

BEARING SET

BEARING main, upper and lower set, 0.50 mm undersize

4шт.

12

A77476

BEARING SET

BEARING main, upper and lower set, 0.75 mm undersize

4шт.

12

A77478

BEARING SET

BEARING main, upper and lower set, 1.00 mm undersize

4шт.

13

A77406

CRANKSHAFT BEARING

BEARING main thrust, upper and lower set, standard

1шт.

13

A77473

THRUST BEARING

BEARING main thrust, upper and lower set, 0.25 mm undersize

1шт.

13

A77475

THRUST BEARING

BEARING main thrust, upper and lower set, 0.50 mm undersize

1шт.

13

A77477

THRUST BEARING

BEARING main thrust, upper and lower set, 0.75 mm undersize

1шт.

13

A77479

THRUST BEARING

BEARING main thrust, upper and lower set, 1.00 mm undersize

1шт.

13

A77841

THRUST BEARING

BEARING main thrust, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

13

A77840

THRUST BEARING

BEARING main thrust, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

14

J904353

GASKET KIT

KIT oil seal, crankshaft front, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

J802820

PACKAGE, REPAIR

KIT oil seal, crankshaft front, with wear sleeve, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

A77809

GASKET KIT

KIT oil seal, crankshaft rear, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE installation

1шт.

25

A77810

SERVICE KIT

KIT oil seal, crankshaft rear, with wear sleeve, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
