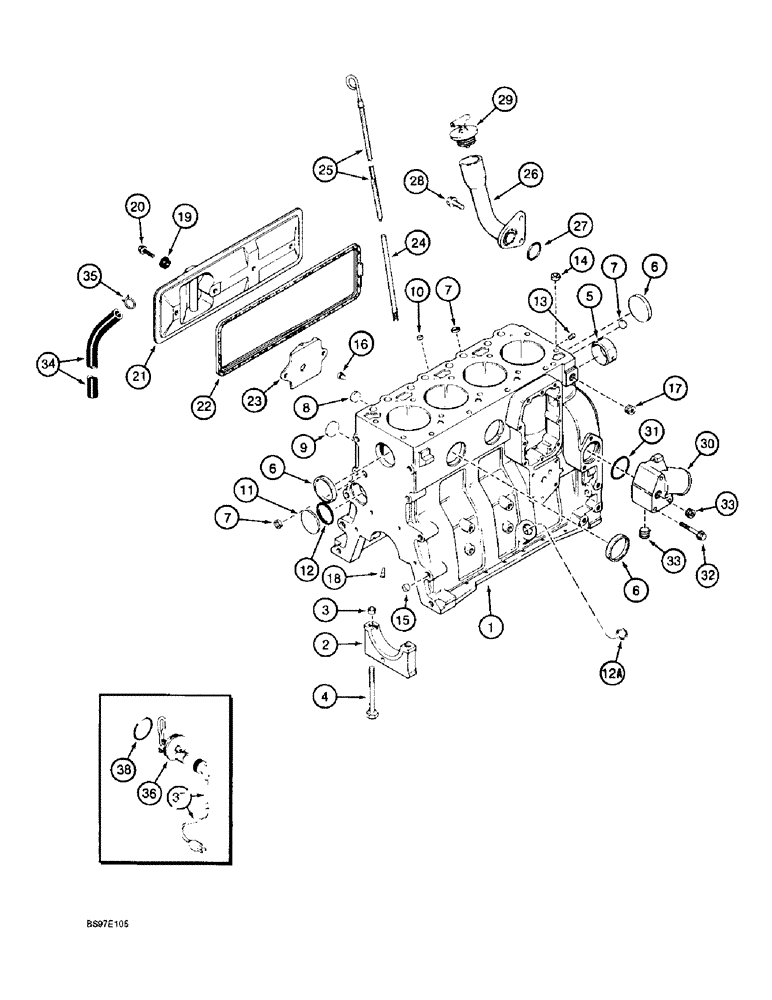

Запчасти Case 580L (2-042) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1989193C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, complete, 4-390, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine

1шт.

For correct engine identification make sure that engine P/N 1989193C1 is stamped on the engine serial number tag.

1шт.

1989067C2R

REMAN-REPLACEMENT EN

Remanufactured, Complete, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly, For N.A. Only

1шт.

1989067C2C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

1989091C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Number

1шт.

1989091C2

BASIC ENGINE

ENGINE ASSEMBLY, basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner

1шт.

JR920384

SKELETON ENGINE

BLOCK ASSEMBLY, short, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, Replaces: P/N AR77758 remanufactured short block assembly

1шт.

AC77758

CORE-ENGINE

NUMBER return, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

A77758

SKELETON ENGINE

KIT short block, no longer available, order P/N J920384 short block assembly and J802641 hardware kit

1шт.

J920384

BLOCK ASSY.

BLOCK ASSEMBLY, short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order P/N J802641 hardware kit, see Figure 2-044 when ordering J920384 block assembly.

1шт.

A77757

CRANKCASE

KIT stripped block, no longer available, order P/N J916254 stripped block and J802641 hardware kit

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY, stripped, engine, no longer available, order P/N J920834 short block assembly and J802641 hardware kit, Includes: Ref. 2 - 8

1шт.

Order P/N J802641 hardware kit, see Figure 2-044 when ordering J920384 block assembly.

1шт.

2

J900967

BEARING CAP

CAP main bearing

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-036, Ref. 2

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm OD

4шт.

7

J900956

PLUG

PLUG expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, Replaces: P/N J920399 hardware kit, Includes: Ref. 9 - 18

1шт.

Order P/N J802641 hardware kit, see Figure 2-044 when ordering J920384 block assembly.

1шт.

9

J900958

PLUG

PLUG expansion, 32 mm OD

2шт.

10

J900955

PLUG

PLUG expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

12a

J920706

PLUG

PLUG expansion, 22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, 16 mm long

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

PLUG hex, 1/8 inch PT

2шт.

17

A77429

PLUG

PLUG hex socket, 1/2 inch PT

1шт.

18

J930139

NOZZLE CAP

NOZZLE piston cooling, Replaces: P/N J919002 nozzle

4шт.

19

J928759

SEALING WASHER

SEAL cover bolt, Replaces: P/N J900267 seal

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8-1.25 x 20 mm

4шт.

21

J925680

COVER

COVER tappet

1шт.

22

J928831

GASKET

GASKET tappet cover, Replaces: P/N J922078 gasket

1шт.

23

J907586

BAFFLE

BAFFLE tappet cover

1шт.

24

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE dipstick

1шт.

25

J905781

DIPSTICK

DIPSTICK oil level gauge

1шт.

26

J905440

TUBE

TUBE oil fill

1шт.

27

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm/1-1/2 inch ID

1шт.

28

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT heavy hex flange, 12-1.75 x 25 mm, class 10.9

2шт.

29

A77424

FILLER CAP

CAP oil fill tube

1шт.

30

J903102

CONNECTION

CONNECTION water inlet

1шт.

31

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

32

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT heavy hex flange, 10-1.5 x 75 mm, class 10.9

3шт.

33

A77429

PLUG

PLUG hex socket, 1/2 inch PT

2шт.

34

J918612

TUBE,360.00 mm

1шт.

35

J904230

CLAMP,25.4mm

CLAMP spring, hose

1шт.

196803A1

KIT

KIT engine block heater, Replaces: P/N A77634 kit, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, block

1шт.

37

196466A1

ELECTRIC CABLE

CABLE engine block heater, Replaces: P/N J905113 cable

1шт.

38

J910517

O-RING

O-RING heater sealing, engine block

1шт.
