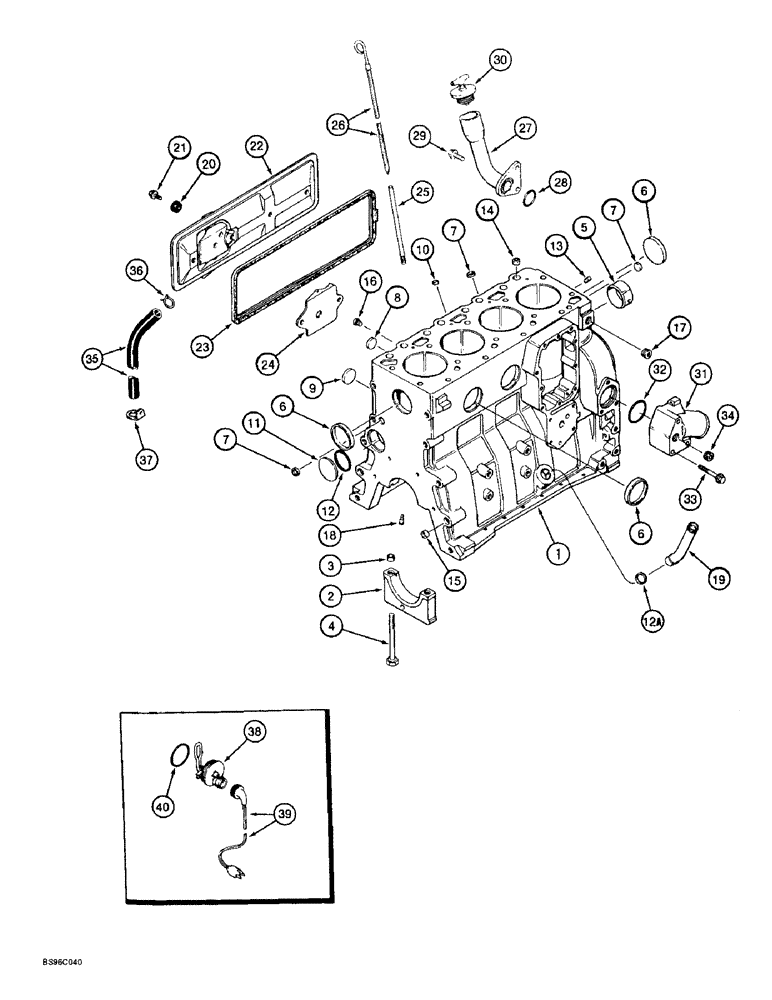

Запчасти Case 580L (2-038) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

181432A1

ENGINE ASSEMBLY

complete, 4T-390, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine

1шт.

For correct engine identification make sure that engine P/N 181432A1 is stamped on the engine serial number tag.

1шт.

1989092C2

BASIC ENGINE

ENGINE ASSEMBLY, basic

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3R

REMAN-BASIC ENGINE

Reman Basic Engine, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3C

CORE-BASIC ENGINE

NUMBER return, use this part number to return basic engine core for credit when using a remanufactured assembly

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY, short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order P/N J802641 hardware kit when ordering J920387 block assembly.

1шт.

JR920387

SKELETON ENGINE

BLOCK ASSEMBLY short, remanufactured, North America only, component parts on this page do not apply to the remanufactured assembly, Replaces: P/N AR77759 remanufactured short block assembly

1шт.

AC77758

CORE-ENGINE

NUMBER return, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY, stripped, engine, no longer available, order J920387 short block assembly and P/N J802641 hardware kit

1шт.

Order P/N J802641 hardware kit when ordering J920387 block assembly.

1шт.

2

J900967

BEARING CAP

CAP main bearing

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-036, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

1шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, Replaces P/N J920399 hardware kit, Includes: Ref. 9 -18

1шт.

Order P/N J802641 hardware kit when ordering J920387 block assembly.

1шт.

9

J900958

PLUG

expansion, 32 mm OD

2шт.

10

J900955

PLUG

expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

sealing, 57 mm ID

1шт.

12a

J920706

PLUG

expansion, 22 mm OD, not used in this application, P/N J903744 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

17

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

18

J930139

NOZZLE CAP

NOZZLE piston cooling, Replaces: P/N J919002 nozzle

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

20

J928759

SEALING WASHER

cover bolt, Replaces: P/N J900267 seal

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

22

J925680

COVER

tappet

1шт.

23

J928831

GASKET

tappet cover, Replaces: P/N J922078 gasket

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

dipstick

1шт.

26

J905781

DIPSTICK

oil level gauge

1шт.

27

J905440

TUBE

oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm/1-1/2 inch ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12-1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J903102

CONNECTION

water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

heavy hex flange, 10-1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather 360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J909670

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, Replaces: P/N A77634 kit, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, block

1шт.

39

196466A1

ELECTRIC CABLE

CABLE engine block heater, Replaces: P/N J905113 cable

1шт.

40

J910517

O-RING

heater sealing, engine block

1шт.
