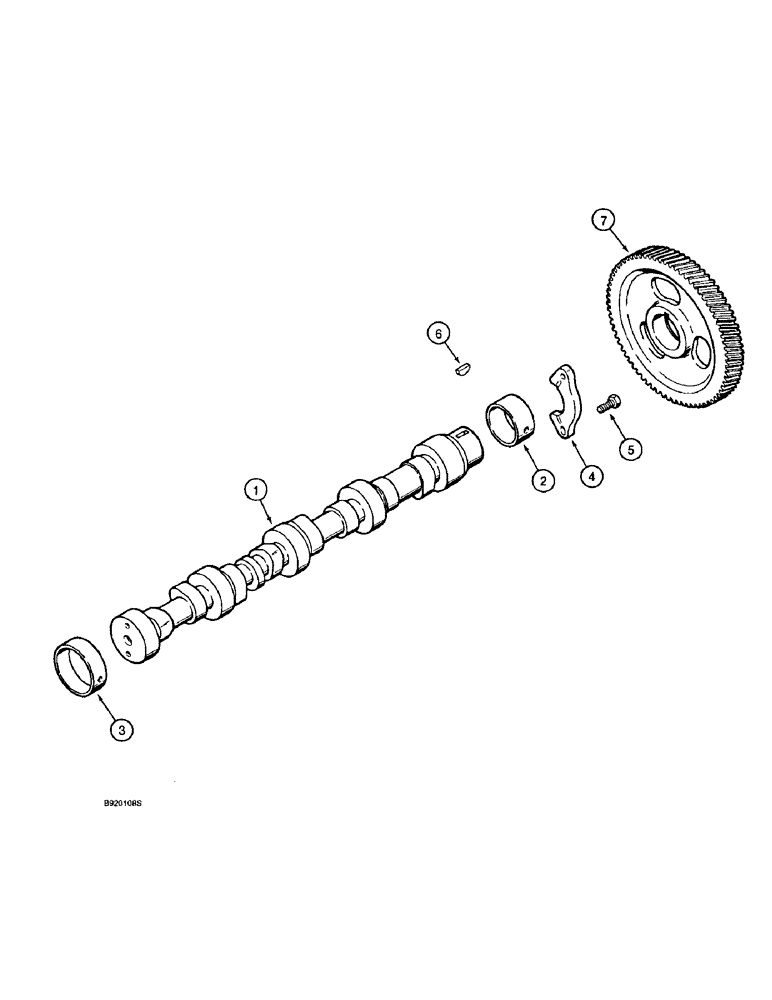

Запчасти Case 580L (2-036) - CAMSHAFT, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J929039

CAMSHAFT

engine, Replaces: P/N J925582 camshaft

1шт.

J929039R

REMAN-CAMSHAFT

580L, 570LXT

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

camshaft, front

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

camshaft, front, used on P/N 181432A2 and 1989193C2 engine

1шт.

2

J904369

BUSHING

camshaft, front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear, service repair only

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install P/N J903242 bushings shown above.

1шт.

4

J927155

SUPPORT

thrust, camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Camshaft gear, Replaces P/N 126-112 key M4 x 6.5 x 15.72

1шт.

7

J929030

PINION

GEAR camshaft, Replaces: P/N J907431 gear

1шт.
