Запчасти Case 580L (2-032) - CYLINDER HEAD COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

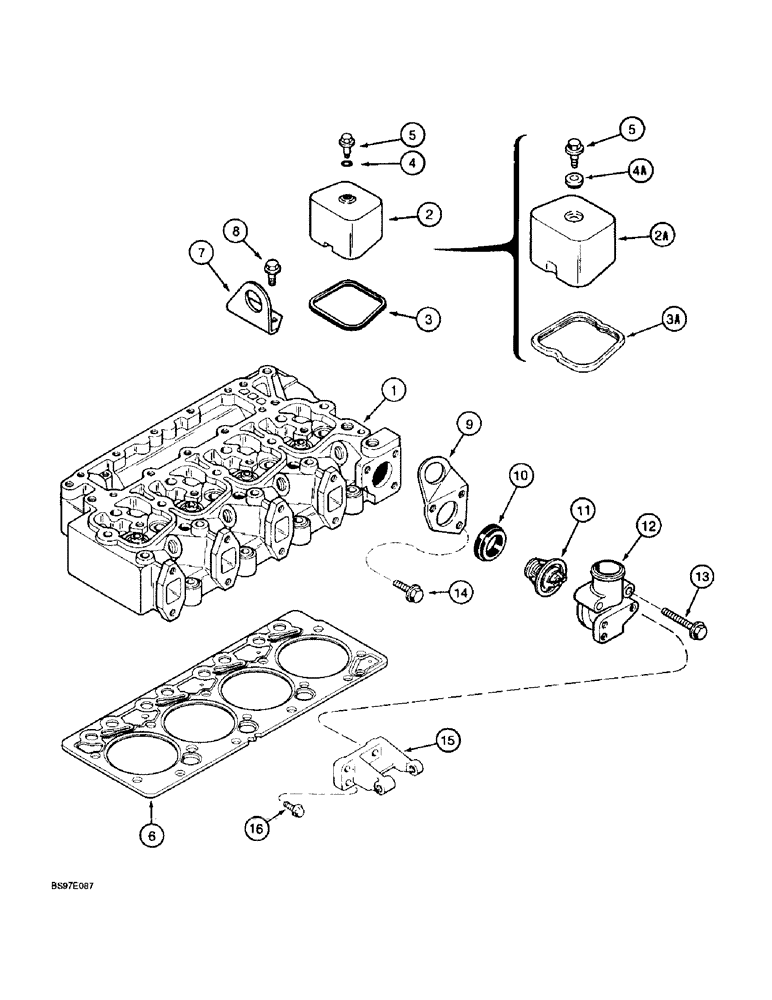

Схема запчастей Case 580L - (2-032) - CYLINDER HEAD COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE
3
3a
4
14
5
15
2
1
5
2a
4a
6
11
12
7
10
13
9
16
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-034 for correct cylinder head and parts list

1шт.

2

J902604

COVER

rocker arm, no longer available, for service order P/N J928404 cover and P/N J928406 isolator

4шт.

2a

J928404

COVER

rocker arm

4шт.

3

J902666

GASKET

SEAL rocker arm cover, no longer available, for service order P/N J930906 seal

4шт.

3a

J930906

GASKET

SEAL rocker arm cover, Replaces: P/N J929795 seal

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, used with P/N J902604 cover

4шт.

4a

J928406

ISOLATOR

noise, used with P/N J928404 cover

4шт.

5

J907049

BOLT,Hex

hex flange, special, 8-1.25 x 21.25 mm

4шт.

6

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, Replaces: P/N J921393 and J282999 gasket

1шт.

6

J283336

GASKET

head, 2 notches, 0.25 mm overthick, Replaces: P/N J921395 and J283001 gasket

1шт.

6

J283338

GASKET

head, 3 notches, 0.50 mm overthick, Replaces: P/N J921397 and J283003 gasket

1шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12-1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat and housing

1шт.

10

J923331

GASKET

thermostat housing

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing

1шт.

12

J914409

HOUSING

thermostat

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT heavy hex flange, 8-1.25 x 70 mm, Replaces: P/N 845-8070 bolt, thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8-1.25 x 35 mm, Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.

Выбрано товаров: 22
