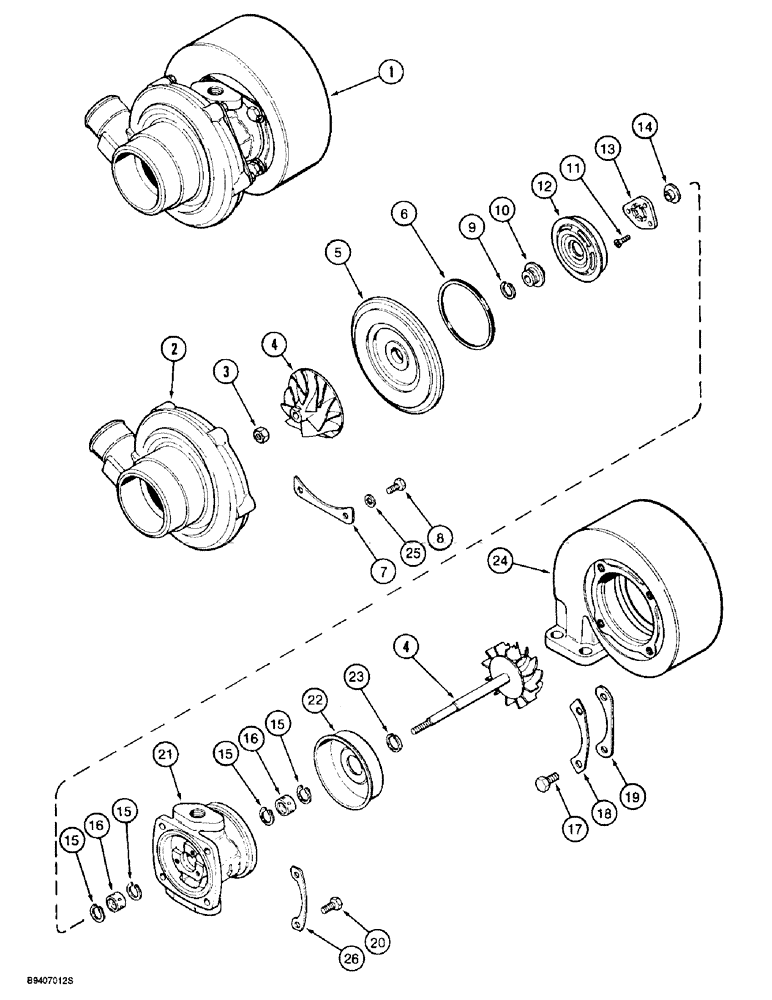

Запчасти Case 580L (2-026) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (02) - ENGINE

1

J802290

TURBOCHARGER

KIT turbocharger, large frame, Includes: Ref. 1 - 26

1шт.

1

JR802290

REMAN-TURBOCHARGER

570LXT, 580L

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J802295

TURBOCHARGER

KIT turbocharger, small frame, Includes: Ref. 1 - 26

1шт.

1

JR802295

REMAN-TURBOCHARGER

KIT turbocharger, engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC802295

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JC524121

CORE-TURBOCHARGER

Return Part Number, Use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

Includes new turbocharger assembly, 1 P/N J519807 turbo oil drain tube gasket, 1 P/N J919687 adapter with O-ring and 1 P/N J709861 turbocharger mounting gasket, not shown

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR turbocharger, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

4шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head,Torx

3шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex

4шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

24

J524123

HOUSING

HOUSING turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock

8шт.

Part of Turbocharger Overhaul Kit, P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 6, 8, 9, 11, 13, 15, 16, 17, 18, 20, 23 and 25

1шт.
