Запчасти Case 580L (2-024) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

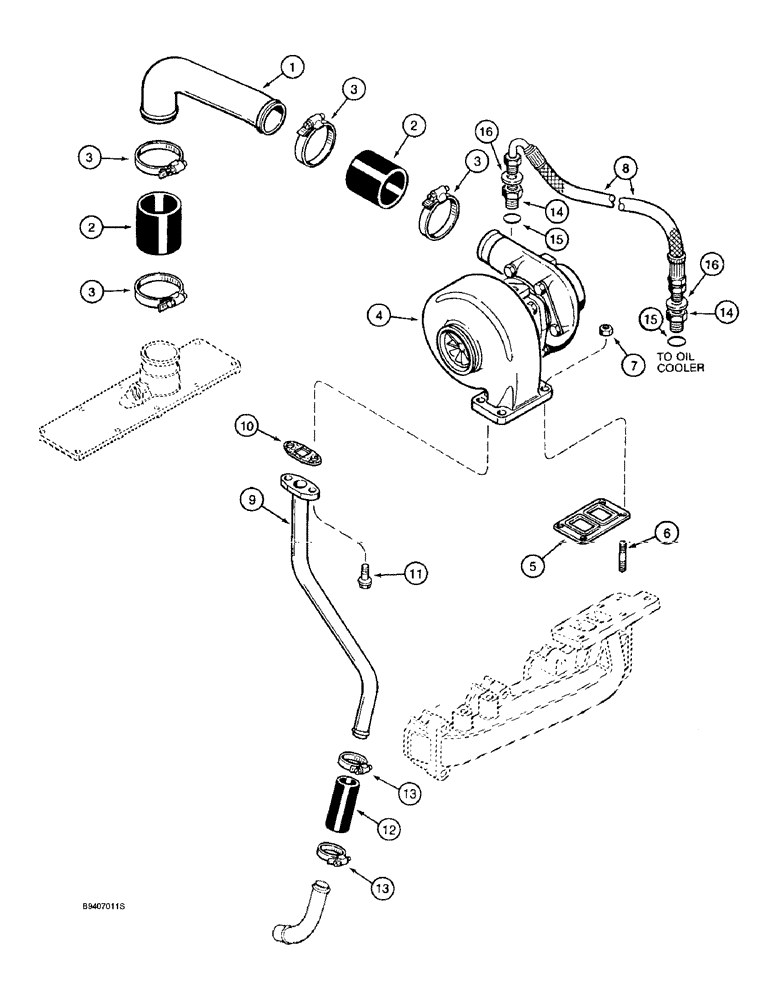

Схема запчастей Case 580L - (2-024) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE
8
7
5
6
3
16
1
14
4
3
3
15
14
11
16
2
13
15
3
9
2
10
12
13

Артикул

Название

Примечание

Количество

1

J906623

TUBE,2 mm OD x 299.8 mm L

crossover

1шт.

2

J916166

INTAKE AIR HOSE

HOSE, 70 mm/2-3/4 inch long, air intake

2шт.

3

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, engine, see Figure 2-026 for correct assembly and parts list

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting, M10 x 40

1шт.

7

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, stud

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J903740

TUBE

turbocharger oil drain

1шт.

10

J931350

GASKET

turbo oil drain tube, Replaces: P/N J914388 and J928919 gasket

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

12

J903745

LARGE HOSE

HOSE, 76 mm/3 inch long, turbocharger oil drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special, 1 used to connect turbocharger oil supply hose to turbocharger, 1 used to connect turbocharger oil supply hose to P/N J918954 oil filter head, Includes: Ref. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

Выбрано товаров: 16
